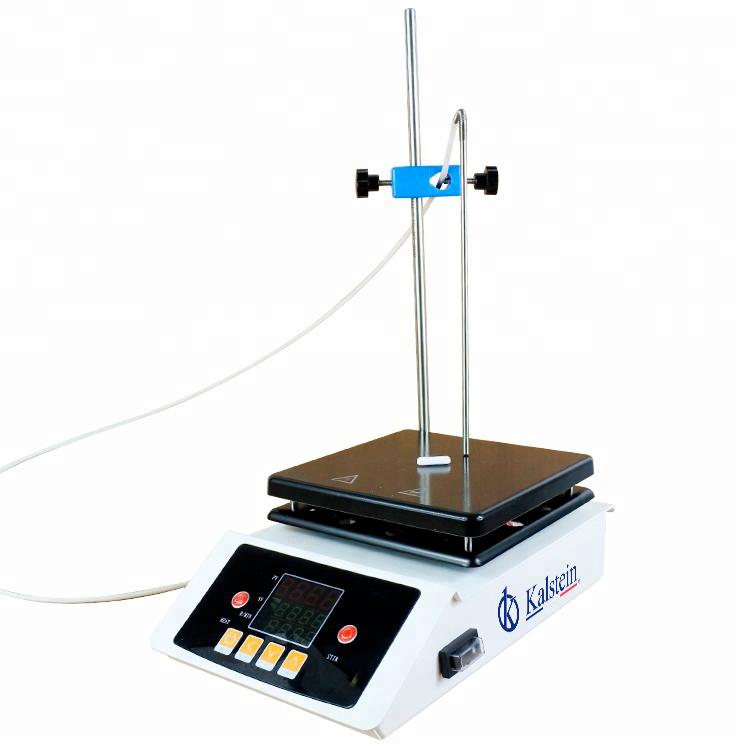

Constant Temperature Digital Magnetic Stirrer With Hot Plate YR02942

Manufacturer: Kalstein

Product Description

Magnetic stirrers are often used in chemistry and biology. They are preferred over gear-driven motorized stirrers because they are quieter, more efficient, and have no moving external parts to break or wear out (other than the simple bar magnet itself). Because of its small size, a stirring bar is more easily cleaned and sterilized than other stirring devices. They do not require lubricants which could contaminate the reaction vessel and the product. They can be used inside hermetically closed vessels or systems, without the need for complicated rotary seals. Magnetic stirrers may also include a hot plate or some other means for heating the liquid.

Product Features
  • Very compact and simple to operate
  • Digital Display temperature and speed, Heating temperature: Rt-380 Degree and mixing speed :100-1800 RPM
  • Heat and corrosion resistant aluminium alloy housing for durability
  • Ceramic coated aluminum heating plate for great heat distribution and corrosion resistance
  • Specially designed housing prevents spill from damaging the electronic components inside
  • Secondary heat insulation plate prevents heat loss and eliminates heat damage to electronic components
  • Adjustable temperature and rotation speed
Model YR02942
Top Plate Dimension (mm) 180 x 180 (7.09 x 7.09inch)
Temperature Control PID Auto control .
Temperature Range for machine Ambient to 400 degree.
Max Temperature for top plate 325 degree
Top Material White ceramics and Black ceramics are both available .
Temperature Display (°C ) Digital Display
Temperature control PID Auto control
Temperature accuracy
Thermocouple probe /sensor type PT100 , with inner and outer thermocouple .
Stir Speed 100- 1800 RPM
Stir Display Digital display
Stir speed accuracy
Permissible Ambient Temperature Ambient Temperature to 40°C
Voltage 160 – 240V , or 110- 130V.
Heating Power supply (w) 550
Motor Power supply 40 W.DC 20
Machine power supply 600
Stirring Flask Capacity (ml) 50ML-5L
Overall Dimensions (mm) ( L × W × H ) 391 x 245 x 120
Packing Dimension (mm) 440 x 290 x 170
Shipping Weight (kg) 5.1
Shell material Time molding waterproof and dustproof shell with Anti-static paint

Additional Information

Weight 5,8 kg
Dimensions 44 × 29 × 17 cm
