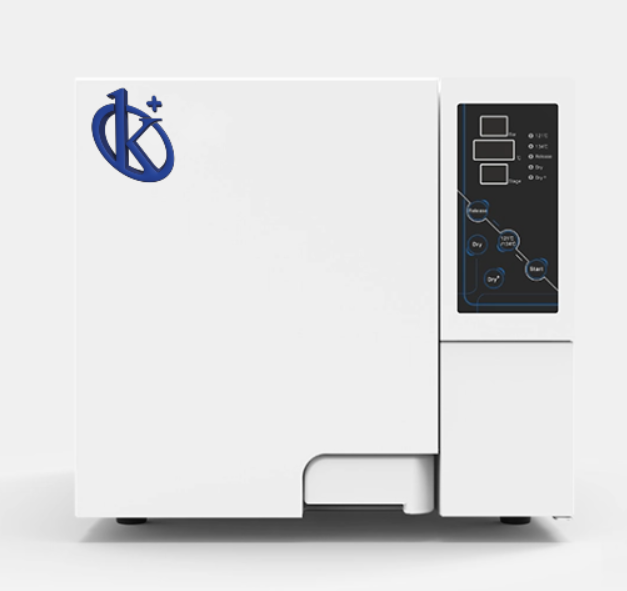

Class N Benchtop Autoclave YR03395 // YR03400

Manufacturer: Kalstein

Description

The Class N Benchtop Autoclave YR03395 / YR03400 is an outstanding choice for medical, dental, and laboratory environments seeking efficient and compact sterilization solutions. This model operates with preprogrammed cycles at 134°C and 121°C, perfectly suitable for sterilizing solid instruments without cavities. Unlike more intricate models, it requires manual chamber filling before each cycle, allowing the user full control over the process. The intuitive LED screen displays clear, real-time data on temperature, pressure, cycle duration, and safety alerts, making it easy to monitor each operation stage.

Market Price

The Class N Benchtop Autoclave YR03395 / YR03400 is positioned within a competitive market range, typically between $500 to $1600 USD. This range reflects its efficiency, reliability, and compact design, which make it a vital investment for high-demand sterilization needs without compromising space or resources.

Frequently Asked Questions

Can this autoclave handle wrapped instruments?
The Class N autoclave is designed for simple solid instruments without cavities or wrappings.

Does it come with a steam generator?
No, this model does not have a built-in steam generator or water tank; users manually fill the chamber before each cycle.

Is there a drying function?
This model includes adjustable drying times to ensure instruments are adequately dried after sterilization.

Advantages and Disadvantages

The Class N Benchtop Autoclave stands out for its compact size, low maintenance cost, and user-friendly interface. Its main disadvantage is the need for manual filling, which limits unsupervised use.

Product Usage in the Field

Widely utilized in dental offices, veterinary clinics, and small laboratories, this autoclave supports rapid, effective sterilization without needing large volumes. It’s ideal for frequent cycles with straightforward instruments, maintaining high biosecurity standards.

Recommendations

For optimal performance and longevity of the autoclave, it is advised to use only distilled water, regularly clean the chamber internally, and avoid overloading. Always verify parameters before starting each cycle to ensure effective sterilization.

Features

  • Compact design ideal for small spaces.
  • Preprogrammed cycles at 134°C and 121°C.
  • Manual chamber filling for user control.
  • Clear LED screen for real-time monitoring.
  • Safety system with automatic lock at pressurization.

Technical Specifications

Model YR03395/YR03396 YR03397 /YR03398 YR03399 /YR03400
Voltage. Frequency 220/110V, 50/60z
Power 1500W
Chamber Volume appr. 18L (E318/E418/E518), appr. 23L (E323/E423/E523)
Chamber Dimensions Ø247x350mm (18L), Ø247x450mm (23L)
Tray Size (W x H) 192x285mm (18L) ,192x380mm (23L)
Tray Material Aluminum
Number of Trays 2/ Max. 4
Weight 32kg/36kg 33kg/37kg 33.5kg/37.5kg
Overall Dimensions (W x H x D) 483x450x515 mm (E318/E418/E518)
483x450x615 mm (E323/E423/E523)
Sterilization Program 134℃/210Kpa, 121℃/110Kpa
Sterilization Time 134℃, Default 30min (30~60min adjustable)
121℃, Default 10min (10~20min adjustable)
Dry No Default 60min (1~60min adjustable) Default 60min (1~60min adjustable)
Dry + No No Default 60min (1~60min adjustable)

Additional information

Weight N/A
Dimensions 62 × 51 × 56 cm
Model

YR03395, YR03396, YR03397, YR03398, YR03399, YR03400
