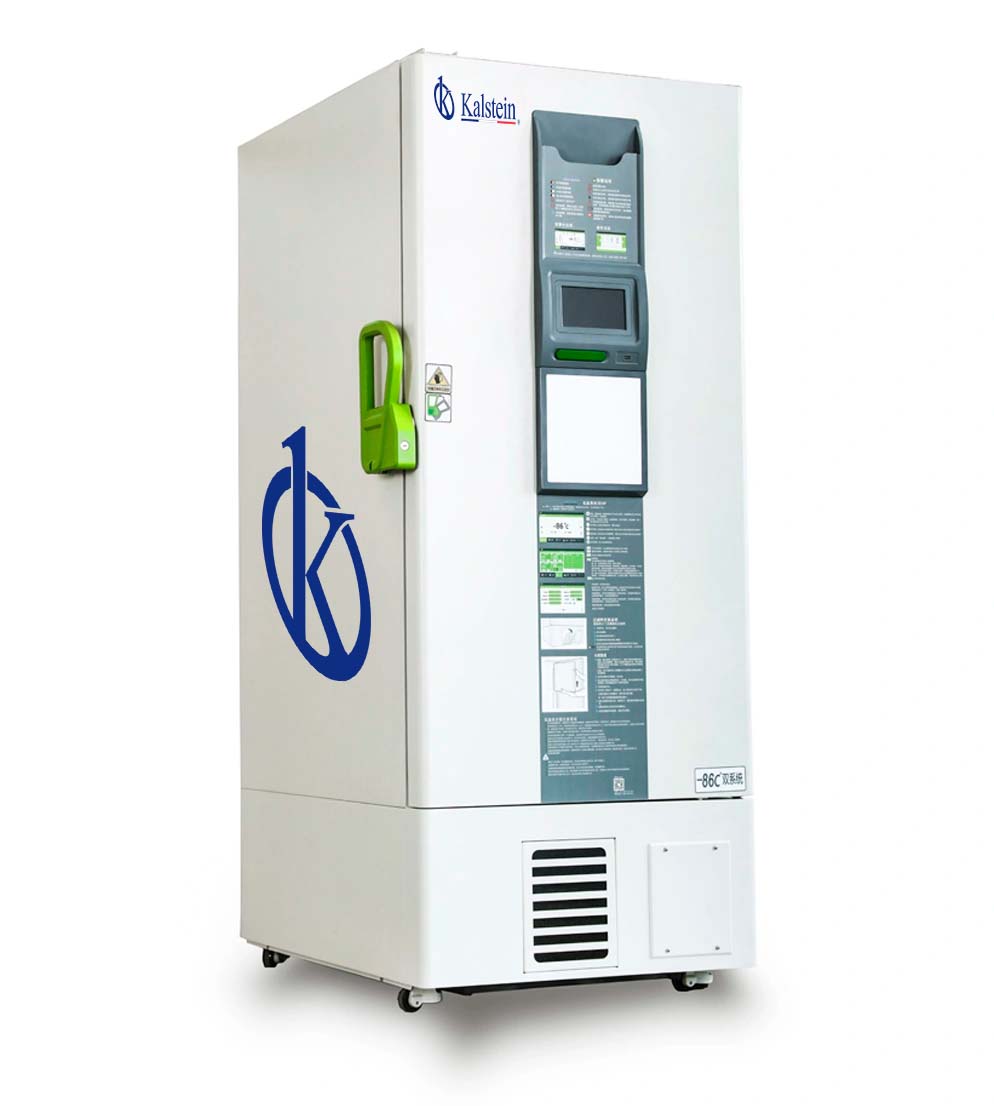

588 Liters Laboratory Upright Freezer Color Sprayed Steel YR05303
Manufacturer: Kalstein
Product Description
-86ºC ULT freezer is specially designed and manufactured for long term storage of various biological products, including viruses, germs, erythrocytes, leucocyte and cutis. Applications can be found in blood banks, hospitals, edipemic prevention service, and research institutes, laboratories in electronic and chemical plants, biological engineering institutes and marine fishery companies.
-86°C dual system ultra low temperature freezer
- Dual system means extra insurance for temperature. Each independent refrigeration system can maintain -80°C separately.
- Two independent refrigeration systems are designed to ensure optimal reliability, longevity and efficiency. Depending on the load demands and ambient conditions, one or both refrigeration systems will operate on demand, ensuring the samples are fully protected under the worst possible condition.
Filed Proven Reliability
- Unique insulated inner door design for four separate storage compartments to minimize frost buildup inside the chamber.
- Specialized control system design for a well-balanced operation of dual refrigeration system.
- Positive filed proven reliability record.
Safety
- Malfunction alarms including high and low temperature, power failure, sensor error, clean-filter, and extremely high ambient, abnormal voltage, thermostat failure, low battery, condenser clean, door ajar.
- Capable of producing two types of alarm outputs, audible buzzer and visible flashing light.
- Door open feature standard and USB port for temperature date downloading standard on upright models.
- Remote alarm contacts.
Technical Specifications
| Model | YR05303 | |
| Specificaitons | Shelf/drawer QTY | Stainless steel shelf/3 |
| Cooling | Direct cooling | |
| Defrost | Manual | |
| Refrigerant | Mixed-gas | |
| Power Consumption (kWh/24h) | 16.5 | |
| Noise (db) | 53 | |
| Ambient temperature (ºC) | 10~32ºC | |
| Temperature range (ºC) | -40~-86ºC | |
| Cooling system | Compressor brand/QTY | SECOP/2 |
| Sensor | PTC | |
| Temperature controller | Microprocessor | |
| Display | LCD display | |
| Power | Voltage/frequency (V/Hz) | 220/50Hz |
| Power (W) | 1500W | |
| Current (A) | 9.1A | |
| Material | Inside material | Stainless steel |
| Outside material | Color sprayed steel | |
| Insulation | PURF | |
| Size | Capacity(L/cu.ft) | 588 |
| NT./GT.(kg) | 297.5/358.5 | |
| Exterior size (W*D*H) (mm) | 885*1100*1995 | |
| Interior size (W*D*H) (mm) | 606*738*1310 | |
| Package size (W*D*H) (mm) | 970*1140*2190 | |
| CBM | 2.42 | |
| 20GP/40GP/40HQ | 12/24/24 | |
| Frozen Racks | Racks | 16(5X5) |
| Boxes (2 Inches) | 400 | |
| Samples(2ml) | 40000 | |
| Alarm | High/low temperature | Y |
| Power failure | Y | |
| Abnormal voltage | Y | |
| Sensor error | Y | |
| Filter screen check | Y | |
| Thermostat failure | Y | |
| Low battery | Y | |
| Condenser clean | Y | |
| High ambient temperature | Y | |
| Door ajar | Y | |
| Power failure backup system(alarm) | 72h | |
| Accessories | Castor | Y |
| Inside door | 2 | |
| Test hole QTY/diameter | 1/25MM | |
| USB port | Y | |
| Chart recorder | / | |
| Data logger | Optional | |
| Remote alarm port | Y | |
| Optional | CO2 back up system | Optional |
| LN2 back up system | Optional | |
| Other | Certification | ISO.CE |
Additional Information
| Weight | 358,5 kg |
|---|---|
| Dimensions | 97 × 113,8 × 218,5 cm |
