Understanding the Operating Principle and Scientific Basis of the YR05851 Cosmetic Rotary Marking Viscometer
The YR05851 Cosmetic Rotary Marking Viscometer stands as a critical tool in the fields of cosmetic formulation and quality control. Understanding its operating principle and the scientific basis behind its function not only enhances its usage but also empowers users to achieve optimal results in viscosity measurement.

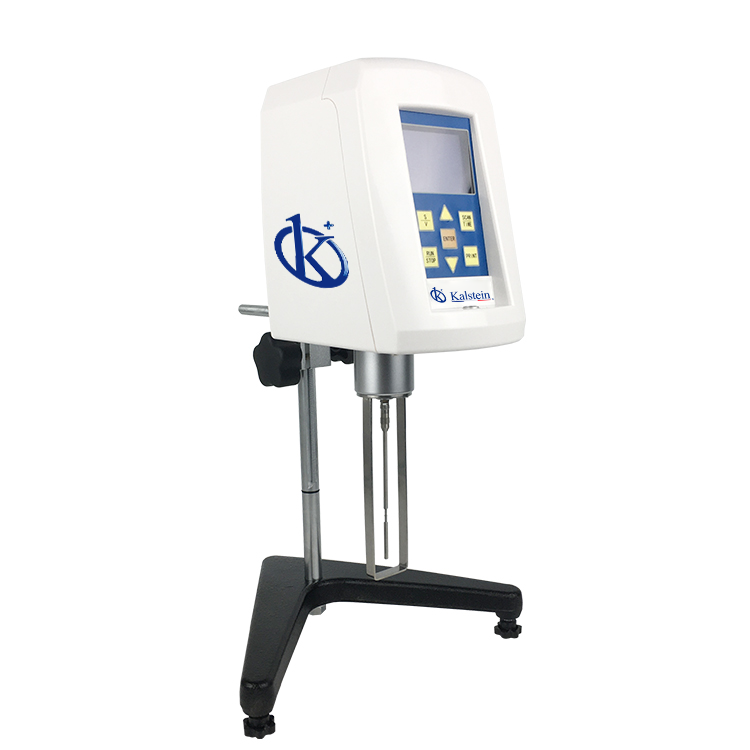

Introduction to the YR05851 Viscometer
The YR05851 model is specifically designed to measure the viscosity of both Newtonian and non-Newtonian liquids, a crucial property in the cosmetic industry. The accuracy of viscosity measurements directly impacts product quality, stability, and performance. Thus, understanding the operation of this viscometer is essential for effective application in real-world scenarios.
Operating Principle of the YR05851 Viscometer
The YR05851 operates on the principle of rotational viscometry. This method entails the use of a rotating spindle submerged in the liquid whose viscosity is to be measured. The resistance encountered by the spindle as it rotates through the liquid generates a torque that is proportional to the viscosity of the liquid.
Key factors influencing the viscosity measurements include the spindle geometry, rotation speed, and the fluid's characteristics. The viscometer can measure a wide range of viscosities, from 1 to 100,000 mPa·s, making it versatile for various applications.
Scientific Foundation: Key Formulas and Concepts
To grasp the functionality of the YR05851, it is essential to understand the fundamental equations involved in viscosity measurement. The primary relationship governing viscous flow is described by Newton's law of viscosity, which states:
τ = η (du/dy)
Where:
- τ = shear stress (N/m²)
- η = dynamic viscosity (Pa·s)
- du/dy = shear rate (1/s)
This equation illustrates that the viscosity of a fluid is the ratio of the shear stress to the shear rate. For the YR05851, various spindles can be selected to optimize the measurement for specific fluid types, further ensuring accuracy and reliability in readings.
Design Choices and Their Significance
The design of the YR05851 integrates user needs with scientific principles. The choice of materials for the spindle and the body of the viscometer ensures durability and resistance to chemical corrosion — critical factors when working with various cosmetic formulations.
Moreover, the ergonomic design of the device allows for easy handling and operation, promoting efficiency in laboratory settings. The viscometer's capacity to utilize multiple spindle sizes allows for precise measurements across a diverse range of sample viscosities.
Comparing Rotational and Capillary Viscometry
While the YR05851 employs rotational viscometry, it is beneficial to compare this method with capillary viscometry, which operates on a different principle. Capillary viscometers measure the time taken for a fluid to flow through a capillary tube under gravity.
Rotational viscometry, as used in the YR05851, provides advantages such as faster measurements and the ability to test a wider range of viscosities without the need for dilutions. This makes it particularly well-suited for complex cosmetic formulations that may exhibit non-Newtonian behavior.
Technical Data Overview of YR05851
| Specification | Value |
|---|---|
| Model | YR05851 |
| Measurement Range | 1-100,000 mPa·s |
| Spindle Specifications | No. 1, 2, 3, 4 (No. 0 is optional) |
| Rotation Speed | 6 / 12 / 30 / 60 rpm |
| Tolerance of Measurement | ± 5% |
| Power Supply | AC 220V ± 10% 50 Hz ± 10% |
| Weight | Net: 2 kg, Gross: 5 kg |
| Dimensions | 280×290×450 mm |
| Packaging Dimensions | 470×300×420 mm |
Frequently Asked Questions
What is the viscosity measurement range of the YR05851?
The YR05851 can measure viscosities ranging from 1 to 100,000 mPa·s, making it suitable for a wide variety of fluids.
How do I select the appropriate spindle for my measurements?
Selecting the right spindle for your viscosity measurement depends on the viscosity of the fluid you are testing. Higher viscosity fluids might require spindles numbered 3 or 4, while lower viscosity fluids could use spindle numbers 1 or 2.
Can the YR05851 measure non-Newtonian fluids?
Yes, the YR05851 is capable of measuring both Newtonian and non-Newtonian fluids, which is critical for the diverse formulations found in the cosmetic industry.
What are the key maintenance tips for the YR05851?
Routine maintenance includes calibration checks, cleaning the spindles after every use, and ensuring that the viscometer is stored in a suitable environment to prevent damage.
What should I do if the YR05851 gives inconsistent readings?
If you experience inconsistent readings, check the calibration, ensure the spindle is clean and undamaged, and confirm that the fluid sample is homogeneous.
How can I request a quote for the YR05851?
Interested users can request a quote on Kalstein Plus, ensuring they receive the best pricing for their laboratory equipment needs.
What are the environmental conditions required for the YR05851?
The recommended operating conditions for the YR05851 include a temperature range of 5-35 degrees Celsius and relative humidity not exceeding 80% for optimal performance.
