Understanding the Operating Principle of the YR05557 Halogen Moisture Analyzer
The YR05557 Halogen Moisture Analyzer is an essential tool in various analytical laboratories. Understanding its operating principle and the scientific fundamentals that underpin its functionality is crucial for effective use. This article delves into the technology and design that make the YR05557 a reliable instrument for moisture analysis.

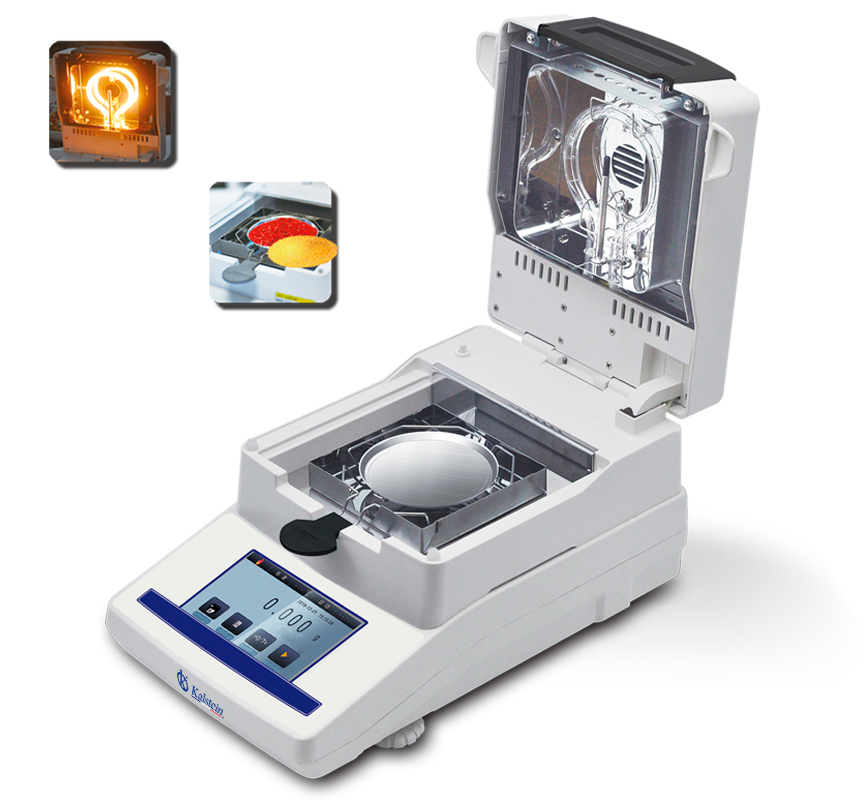

Overview of the YR05557 Halogen Moisture Analyzer
The YR05557 is designed for rapid and accurate moisture content determination in different samples. Its key features include a 5-inch touch screen, halogen lamp, HBM sensor, and high-quality aluminum housing paired with a stainless steel chamber. This combination allows for precise temperature control and reliable readings, which are critical in any analytical process.
Scientific Principles Behind Moisture Analysis
The YR05557 operates based on the principle of thermogravimetric analysis (TGA). In this process, a sample is heated, and the weight loss due to moisture evaporation is measured. The analysis can be summarized in the following equation:
Moisture Content (%) = (Initial Weight - Final Weight) / Initial Weight × 100
This equation illustrates the fundamental operation of the YR05557, where accurate measurement of initial and final weights is crucial for determining moisture content.
Components of the YR05557 and Their Functions
Understanding the components of the YR05557 helps to grasp how it achieves its moisture analysis goals. Key components include:
- Halogen Lamp: Provides rapid and efficient heating, enabling quick analysis.
- HBM Sensor: Ensures precise measurement of temperature, which is critical for consistent results.
- Stainless Steel Chamber: Ensures durability and easy cleaning, preventing cross-contamination of samples.
- 5-Inch Touch Screen: Facilitates user interaction, allowing for easy configuration and monitoring of the analysis process.
Dynamic Real-Time Curve Display in the YR05557
One innovative feature of the YR05557 is its dynamic, real-time curve display. This visual representation of the weight loss over time allows operators to monitor the drying process in real-time, providing insights into the efficiency of moisture removal from the sample. This feature aids in decision-making and enhances the accuracy of results.
| Component | Function |
|---|---|
| Halogen Lamp | Rapid heating of samples |
| HBM Sensor | Precise temperature measurement |
| Stainless Steel Chamber | Durability and easy cleaning |
| 5-Inch Touch Screen | User-friendly interface for monitoring |
Temperature and Time Adjustment Capabilities
The YR05557 allows operators to adjust both the heating temperature and drying time, which is essential for optimizing the moisture analysis process for different materials. The adjustable temperature range spans from 40°C to 199°C, with a step increment of 1°C. Moreover, operators can set the drying time from 1 to 99 minutes, making it adaptable to various sample types and desired moisture levels.
Technical Specifications of the YR05557
| Model | YR05557 |
| Capacity | 110g |
| Readability | 0.001g |
| Operating Temperature | 5℃-35℃ |
| Monitor | 5-inch touch screen |
| Calibration | External Calibration |
| Interface | RS232/RJ45/USB |
| Pan Size | Ø90mm |
| Package Size | 490x350x360mm |
| Gross Weight | 7.5 kg |
| Heating Source | Halogen Lamp |
| Temperature Sensor | PT100 |
| Temperature Range | 40℃-199℃ |
| Temperature Step | 1℃ |
| Humidity Range | 0.00%-100.00% |
| Humidity Readability | 0.01% |
| Dry Range | 100.00%-0.00% |
| Dry Readability | 0.01% |
| Temperature Adjustment | 40℃-199℃ by step of 1℃ |
| Time Setting | 1-99 min by 10 s |
| Number of Storage | 20 |
| History Number | 20 |
| Power Supply | 220V ±15% 50HZ/110V±15% 60HZ/400W |
| Balance | Input: 220V 50HZ/110V 60HZ Output: 9V |
Frequently Asked Questions
What is the maximum capacity of the YR05557 Halogen Moisture Analyzer?
The YR05557 has a maximum capacity of 110 grams, making it suitable for a wide range of sample sizes in moisture analysis.
How does the halogen lamp contribute to the moisture analysis process?
The halogen lamp in the YR05557 provides quick and efficient heating, which accelerates the drying process and allows for faster results in moisture analysis.
What is the significance of using a stainless steel chamber in the YR05557?
The stainless steel chamber ensures durability and facilitates easy cleaning, which is essential for maintaining the integrity of samples and preventing cross-contamination.
Can the temperature be adjusted during moisture analysis on the YR05557?
Yes, the YR05557 allows users to adjust the temperature within a range of 40°C to 199°C, enabling customization based on the sample type.
What calibration method is used for the YR05557 Halogen Moisture Analyzer?
The YR05557 utilizes external calibration methods, ensuring that accurate and reliable readings are obtained during moisture analysis.
How does the dynamic curve display enhance the operation of the YR05557?
The dynamic curve display provides real-time monitoring of weight loss during the analysis, allowing operators to make immediate decisions based on the drying process.
What types of samples can be analyzed using the YR05557?
The YR05557 is versatile and can analyze a variety of samples, including agricultural products, food items, and chemicals, making it suitable for multiple industries.
