Viscometer

Q: Jak dokonać zakupu Viscometer?

Możesz kupić e-mailem (sales@kalstein.eu), telefonicznie (+33 (0) 1 70 39 26 50) lub przez oficjalną stronę Kalstein w swoim kraju.

Viscometers are essential instruments in laboratories, providing critical measurements of fluid viscosity. Their applications span various industries, including pharmaceuticals, food and beverage, and cosmetics, allowing for quality control and product development.

When selecting a viscometer, understanding the specific needs of your laboratory is crucial. Factors such as fluid type, measurement range, and desired accuracy will influence your choice, ensuring you invest in the right equipment for your applications.

View category

What you should know before selecting a viscometer and making an investment

Key factors to consider

When choosing a viscometer, consider factors like the viscosity range, temperature tolerance, and the type of fluid being tested. Different viscometers, such as rotational or capillary types, are suited for specific applications, impacting the accuracy and reliability of your measurements.

Calibration and maintenance requirements are also critical; ensure the model you select is easy to maintain and calibrate. This will help prolong its life and maintain accuracy over time.

Market price range

The price of viscometers can vary significantly based on features, technology, and brand. Basic models may start from a few hundred dollars, while advanced digital and specialized viscometers can cost several thousand. It's crucial to evaluate your budget against the required features to find the best fit.

Consider long-term investment value rather than just initial costs. Sometimes a higher-priced model can offer better accuracy and durability, making it more cost-effective in the long run.

Value for money

When assessing value for money, consider not just the purchase price but also the operational costs, including maintenance, calibration, and potential downtime. A more expensive viscometer that requires less frequent maintenance might save you money over time.

Additionally, explore features that enhance usability, such as user-friendly interfaces and advanced data logging capabilities. These can greatly improve efficiency and accuracy in laboratory environments.

Expected lifespan based on use and maintenance

The lifespan of a viscometer is influenced by its quality, usage frequency, and maintenance. High-quality instruments generally last longer and withstand rigorous use. Regular cleaning and proper handling are essential to prolong their life.

Consider the manufacturer's recommendations for maintenance schedules. Following these guidelines ensures consistent performance and helps avoid premature failure, maximizing your investment in laboratory equipment.

VISCOMETER KALSTEIN

Discover viscometer for your laboratory

Explore our range of viscometers designed to meet diverse laboratory needs, ensuring precise viscosity measurements for various applications. Each model is engineered for reliability, accuracy, and ease of use, making them an excellent addition to your lab.

Touch Screen Brookfield Viscometer YR05858 - YR05859

The Touch Screen Brookfield Viscometer YR05858 - YR05859 offers a cutting-edge solution for measuring viscosity with precision and ease. Designed for

View product

Brookfield Viscosity Tester YR05860 // YR05864

The Brookfield Viscosity Tester YR05860 // YR05864 offers seamless integration of touch-screen technology, ensuring fast and precise viscosity measure

View product

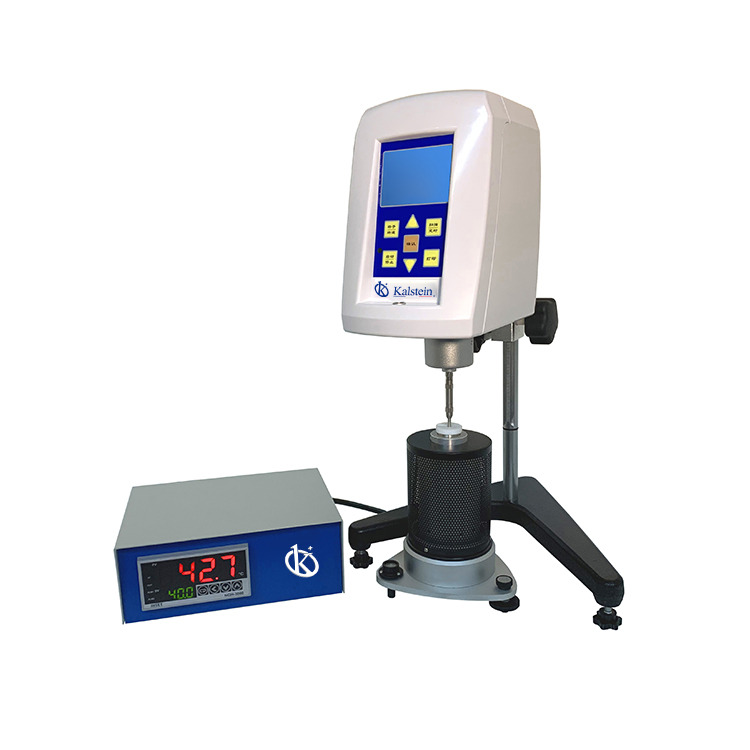

High Temperature Viscometer YR05843 // YR05846

The High Temperature Viscometer YR05843 // YR05846 is a cutting-edge instrument designed for precise and efficient viscosity measurements of various m

View product

Cosmetics Rotating Dial Viscometer YR05851 - YR05852

The Cosmetics Rotating Dial Viscometer YR05851 - YR05852 is a state-of-the-art instrument designed for easy digital rotary viscosity measurements. Fea

View product

Our best-selling viscometer

Digital rotary viscometer YR06639//YR06644

The YR06639//YR06644 Series Digital Rotary Viscometer is a high-precision tool designed for advanced fluid analysis. With a measurement capacity reaching up to 320 million mPa.S, this equipment is the ideal solution for laboratories and industries working with high-viscosity materials. Its intuitive design allows operators to obtain fast and reliable results, offering accuracy comparable to the most demanding international standards. It is the perfect device for those seeking cutting-edge technology at a competitive cost without sacrificing precision.

Design and Technology

This equipment features a control panel with a touch keyboard and a large LCD screen that facilitates the reading of complex data. Key technological innovations include:

Auto-Scanning: The system recommends the optimal combination of rotor and speed for unknown samples.
Dual Connectivity: Includes two RS232 ports, allowing simultaneous connection to a computer for data management and a printer for physical records.
Rheological Analysis: Ability to display shear rate and shear stress, allowing for an in-depth study of fluid behavior.
Computerized Calibration: Each measurement range is software-adjusted to minimize human error.

Frequently Asked Questions (FAQ)

Is the device difficult to level? No, it features a level control on the front for quick and visual adjustment.
Can I measure very hot samples? Yes, using the optional high-temperature furnace, it can measure molten materials such as asphalt or waxes.
What if my sample size is very small? There is an optional small sample adapter (SSR) designed specifically for volumes of only 7 to 11 ml.
Does it come with PC software? Yes, it can be connected to a computer via the RS232 interface to track viscosity curves.

Advantages and Disadvantages

Advantages:

Extremely wide measurement range (up to 320M mPa.s).
Stable results and high resistance to electrical interference.
Easy conversion of units (mPa.s, Pa.s, P, cP) and temperature (°C/°F).
Excellent quality-to-price ratio compared to imported brands.

Disadvantages:

Requires optional accessories (Pt100 probe) to measure temperature with 0.1°C precision.
The equipment's size (12 kg) requires a fixed and stable workspace.

Field Use and Recommendations

This viscometer is essential in industrial quality control laboratories and biochemical research centers. Its use is highly recommended in:

Chemical Industry: Production of paints, inks, and adhesives.
Cosmetics: Formulation of high-density creams and gels.
Food Industry: Analysis of starches, pulps, and syrups.
Construction: Evaluation of asphalts and hot-melt glues.
Operating Tip: To achieve maximum precision, ensure the front level bubble is perfectly centered before starting any measurement.

Technical Specifications

Specification	YR06639	YR06640	YR06641
Speed (r/min)	0.3 – 100 (37 tipos)	0.3 – 100 (37 tipos)	0.3 – 100 (37 tipos)
Rank R2 - R7 (mPa.s)	100 - 13.000.000	200 - 26.000.000	800 - 104.000.000
Rank URL (mPa.s)	6.4 - 1.000	12.8 - 1.000	51.2 - 2.000
Rotor 21# (mPa.s)	50 - 167.000	100 - 333.000	400 - 1.300.000
Rotor 27# (mPa.s)	250 - 834.000	500 - 1.700.000	2.000 - 6.700.000
Rotor 28# (mPa.s)	500 - 1.700.000	1.000 - 3.300.000	4.000 - 13.300.000
Rotor 29# (mPa.s)	1.000 - 3.300.000	2.000 - 6.600.000	8.000 - 26.600.000
Dosage R1-R7	500 ml	500 ml	500 ml
Dosage ULR	21 ml	21 ml	21 ml
Dosage 21# / 27#	7.8 ml / 11.3 ml	7.8 ml / 11.3 ml	7.8 ml / 11.3 ml
Dosage 28# / 29#	12.6 ml / 11.5 ml	12.6 ml / 11.5 ml	12.6 ml / 11.5 ml
Measurement Error	±1%	±1%	±1%
Repetitive Error	±0.5%	±0.5%	±0.5%
voltage	110V / 220V	110V / 220V	110V / 220V
Dimensions	300300450(mm)	300300450(mm)	300300450(mm)
Weight	12 kg	12 kg	12 kg

Specification	YR06642	YR06643	YR06644
Speed (r/min)	0.1 – 200 (58 tipos)	0.1 – 200 (58 tipos)	0.1 – 200 (58 tipos)
Rank R2 - R7 (mPa.s)	100 - 40.000.000	200 - 80.000.000	800 - 320.000.000
Rank URL (mPa.s)	3.2 - 1.000	6.4 - 1.000	25.6 - 2.000
Rotor 21# (mPa.s)	25 - 500.000	50 - 1.000.000	200 - 4.000.000
Rotor 27# (mPa.s)	125 - 2.500.000	250 - 5.000.000	1.000 - 20.000.000
Rotor 28# (mPa.s)	250 - 5.000.000	500 - 10.000.000	2.000 - 40.000.000
Rotor 29# (mPa.s)	500 - 10.000.000	1.000 - 20.000.000	4.000 - 80.000.000
Dosage R1-R7	500 ml	500 ml	500 ml
Dosage ULR	21 ml	21 ml	21 ml
Dosage 21# / 27#	7.8 ml / 11.3 ml	7.8 ml / 11.3 ml	7.8 ml / 11.3 ml
Dosage 28# / 29#	12.6 ml / 11.5 ml	12.6 ml / 11.5 ml	12.6 ml / 11.5 ml
Measurement Error	±1%	±1%	±1%
Repetitive Error	±0.5%	±0.5%	±0.5%
voltage	110V / 220V	110V / 220V	110V / 220V
Dimensions	300300450(mm)	300300450(mm)	300300450(mm)
Weight	12 kg	12 kg	12 kg

View product

Detailed analysis of viscometer for an effective and safe choice

Exploring Cutting-Edge Laboratory Viscometers: A Comparative Analysis

In the world of laboratory viscometers, the selection of the right equipment is pivotal to obtaining accurate viscosity measurements. This article provides an in-depth comparative analysis between two prominent models: the Viscosity Measuring Analyzer Laboratory Viscometer YR05855 - YR05856 by Kalstein and the Digital Rotational Viscometer NDJ-1 by ShangHai Nirun. Understanding the nuances of thes

Discover the Power of Precision with Kalstein Viscometers

Kalstein Viscometers: High Accuracy and Reliability Kalstein's viscometers are designed with precision and reliability in mind, offering unparalleled performance for laboratory needs. As someone who has used these instruments extensively, I can assert that these viscometers provide accurate viscosity measurements, essential for a wide range of applications in various industries, from pharmaceutic

Viscometers for Consistent Process Viscosity Control

Viscometers are essential for any laboratory working with fluids, ensuring that manufacturing or research processes maintain proper...

Reliable Viscosity Measurement: Professional Viscometers for Laboratories

Accurate viscosity measurement is essential in many laboratories, as it helps evaluate a liquid's resistance to flow. If you work in fields such as scientific research, quality control, or industrial production, you know that viscometers are key tools to ensure consistent and reliable results.

viscometer offer catalog

Guides about viscometer

Complete guides to choose viscometer

Digital Viscometer for Precise Viscosity Measurement in Fluids

The viscometer is an essential tool in laboratories and various industries where accurate fluid viscosity measurement is required. Viscosity is a key property in analyzing and controlling the quality of products and processes in areas like

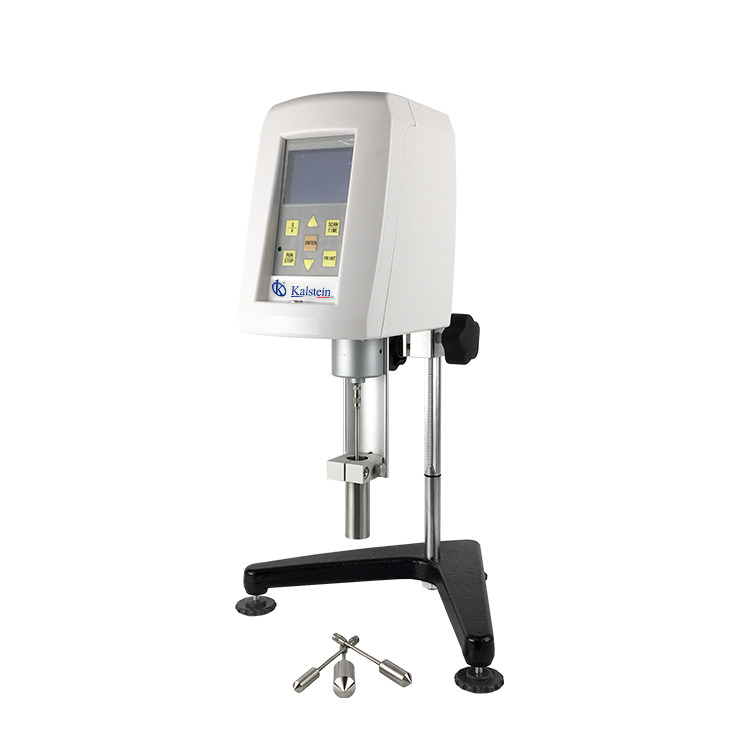

Digital Viscometer for Precise Measurement of Fluid Viscosity

Viscosity measurement is a fundamental process in numerous industrial and research sectors, as it allows for evaluating the flow properties of liquids and suspensions. Viscometers, especially digital ones, have revolutionized the way viscos

Viscometers of High Precision: Advanced Rheological Control for the Characterization of Complex Fluids

Viscometers are essential instruments in laboratories that analyze the viscosity of complex fluids. These devices allow the study of the rheological behavior of substances under various conditions, providing valuable data on their flow and

Laboratory Viscometers: Precise Viscosity Measurement in Fluid Testing

In research laboratories, accurate viscosity measurement is essential for a wide range of scientific applications, from pharmaceutical research to the food industry. Viscometers are indispensable tools for measuring the resistance of a flui

Najczęściej zadawane pytania o Viscometer

Jak poznać ceny Viscometer?

Aby poznać cenę Viscometer, wyślij nam e-mail za pośrednictwem formularza kontaktowego AQUI.

Jakie są czasy dostawy Viscometer?

Czas dostawy zależy od dostępności w magazynie i rodzaju transportu (lotniczy lub morski). W magazynie: lotniczy 15-30 dni, morski 45-60 dni. Poza magazynem: lotniczy 30-60 dni, morski 60-90 dni.

Jak dokonać zakupu Viscometer?

Możesz kupić e-mailem ([email protected]), telefonicznie (+33 (0) 1 70 39 26 50) lub przez oficjalną stronę Kalstein w swoim kraju.

Jak działa gwarancja na Viscometer?

Wszystkie urządzenia Kalstein objęte są 1-roczną gwarancją na wady produkcyjne. Gwarancja nie obejmuje szkód spowodowanych nieprawidłową instalacją lub użytkowaniem. Zobacz nasze «warunki» AQUI.

Czy mogę poprosić o wycenę online Viscometer?

Tak, możesz poprosić o wycenę bezpośrednio na naszej oficjalnej stronie. Kliknij AQUI.
