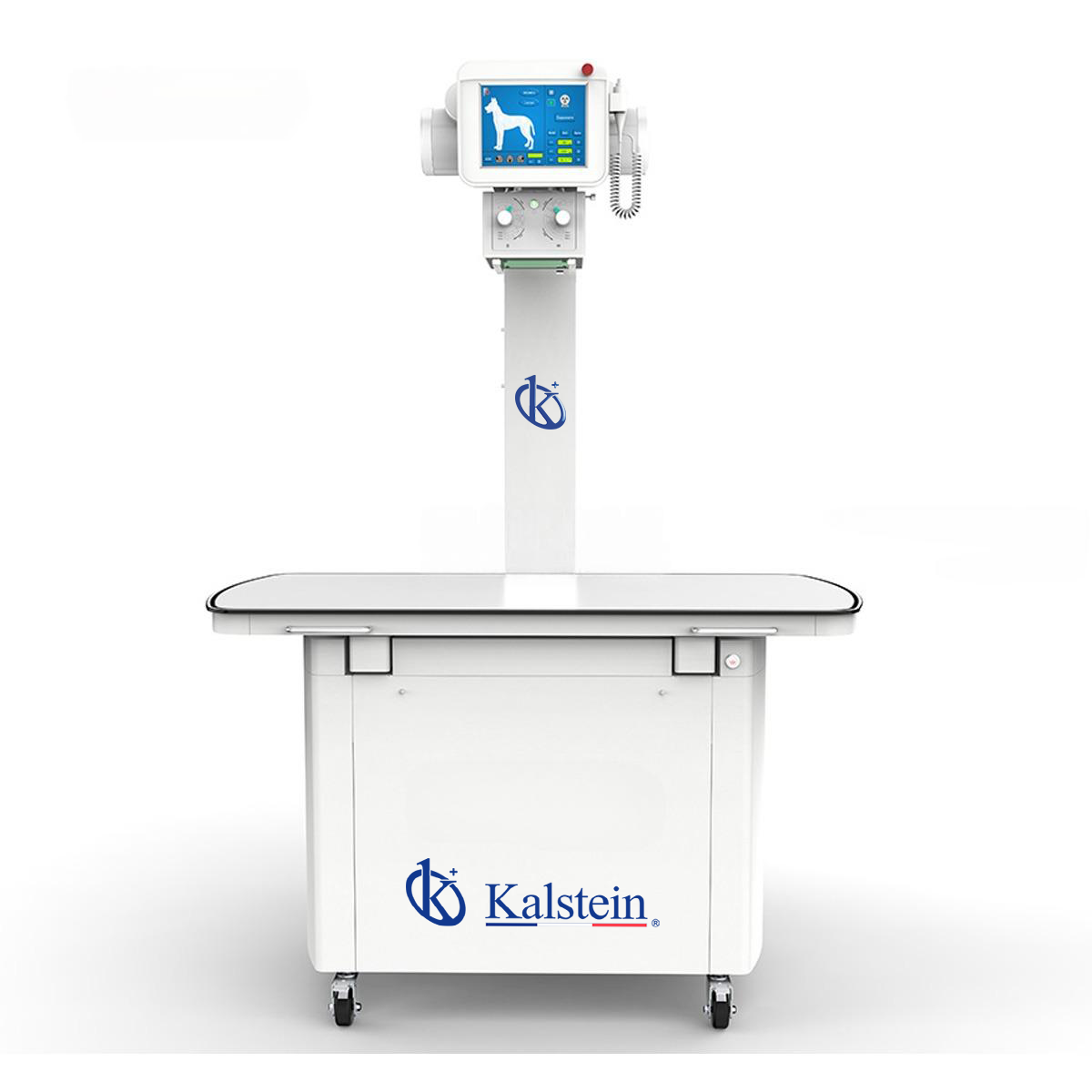

Troubleshooting Symptoms for the YR06163 Digital Stationary Veterinary X-ray
The YR06163 Digital Stationary Veterinary X-ray is a critical tool in veterinary practices, enabling effective imaging for diagnosis and treatment. However, like any sophisticated equipment, it may encounter issues that can lead to operational challenges. This article aims to delve into common troubleshooting symptoms associated with the YR06163, providing a comprehensive guide on identifying problems, potential causes, and practical solutions.
Technical Specifications of YR06163
| Specification | Details |
|---|---|
| Model | YR06163 |
| Maximum Output Power | 20 kW |
| Range of Tube Current | 32~320 mA |
| Tube Voltage Range | 40 kV~120 kV |
| Exposure Time Range | 10 ms~5000 ms |
| mAs Range | 0.32 mAs~320 mAs |
| Input Voltage Range | AC 220V±22V |
| Communication Interface | RS-232 |
| Max Tube Voltage | 120 kV |
| Small Focus | 1.0 mm |
| Large Focus | 2.0 mm |
| Weight (Gross) | 105 kg |
Common Symptoms and Troubleshooting Guide
Understanding the symptoms that may arise during the operation of the YR06163 is essential for effective troubleshooting. Below, we present a symptom-by-symptom analysis, detailing potential causes and solutions.
Equipment Does Not Power On
One of the most common issues is the equipment failing to power on. Here are some probable causes and solutions:
- Cause: Power supply failure.
Solution: Check the power cord and plug, ensuring they are securely connected and undamaged. - Cause: Internal fuse is blown.
Solution: Inspect and replace the fuse according to the user manual. - Cause: Circuit breaker tripped.
Solution: Reset the circuit breaker and attempt to power on again.
Error Code E-03
Error code E-03 typically indicates a problem with the tube voltage. Follow these troubleshooting steps:
- Cause: Voltage is outside the acceptable range.
Solution: Check the input voltage and ensure it is within AC 220V±22V. - Cause: Faulty connection within the system.
Solution: Inspect the connections and wires for any damage or disconnections.
Inconsistent Readings
Inconsistent readings can lead to diagnostic errors. Here are steps to investigate:
- Cause: Calibration issues.
Solution: Perform a recalibration of the X-ray system following the guidelines in the user manual. - Cause: Environmental interferences.
Solution: Ensure there are no external electromagnetic interferences affecting the readings.
Troubleshooting Summary Table
| Symptom | Cause | Solution |
|---|---|---|
| Equipment Does Not Power On | Power supply failure | Check connections and power cord |
| Error Code E-03 | Voltage is outside range | Check input voltage |
| Inconsistent Readings | Calibration issues | Recalibrate the system |
Frequently Asked Questions
What should I do if my YR06163 displays an error code that I do not recognize?
If an unrecognized error code appears, consult the user manual for a comprehensive list of error codes and their meanings. If the error persists, reach out to technical support for assistance.
How can I ensure the longevity of my YR06163 X-ray system?
Regular maintenance checks, keeping the device clean, and adhering to operational guidelines can significantly enhance the longevity of your YR06163 system. Additionally, consider annual servicing from a qualified technician.
Is it necessary to calibrate the YR06163 regularly?
Yes, regular calibration is essential for maintaining accurate readings and ensuring the device operates within its specifications. It is recommended to calibrate at least once a year or after significant repairs.
Can environmental factors affect the performance of my YR06163?
Yes, factors such as temperature fluctuations, humidity, and electromagnetic interference can impact the performance of the YR06163. Ensure that the operating environment is stable and within the specified ranges.
What are the common spare parts I might need for the YR06163?
Common spare parts include fuses, power cords, and calibration tools. It’s advisable to have these parts on hand for quick replacements during maintenance.
