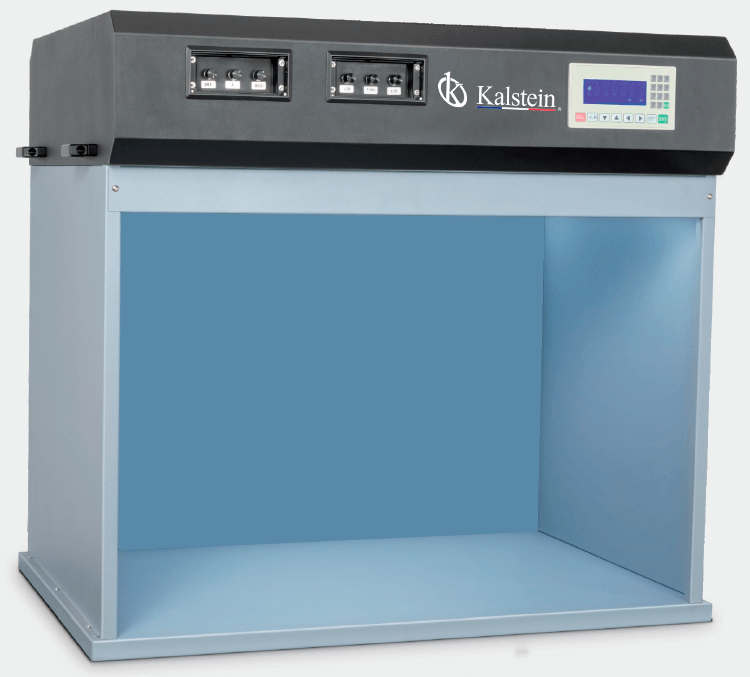

Troubleshooting Common Errors in the YR05532 Color Light Box by Symptom
The YR05532 Color Light Box is a sophisticated device designed for precise color assessment across various industries. Given its advanced lighting features, operators may encounter several common issues that can affect its performance. This guide aims to systematically address these errors by focusing on symptoms, providing probable causes, diagnostic steps, and concrete solutions to enhance your operational efficiency.
Technical Specifications of YR05532
| Brand | Model | Weight | Size (L*W*H) | Standard Light Source | Power Supply |
|---|---|---|---|---|---|
| Kalstein | YR05532 | 60kg | 1008 × 716 × 898 mm | ASTM/BS/CIE/ISO/DIN/TL84/ANSI | AC 220 V-240 V, 50/60 Hz |
Common Symptoms and Troubleshooting Guide
The following sections outline common symptoms encountered when operating the YR05532, along with their likely causes and solutions.
1. Equipment Does Not Power On
If the YR05532 fails to power on, this can be due to various factors:
- Power Connection Issue: Ensure that the power cord is securely connected and the outlet is functioning.
- Fuse Failure: Check if the internal fuse has blown and replace it if necessary.
- Internal Component Failure: A malfunctioning power supply may require professional inspection.
Solution: Verify the power source, replace the fuse if needed, or consult a technician for internal inspection.
2. Error Code E-03 Displayed
Error code E-03 typically indicates a malfunction with the lighting system:
- LED Failure: One or more LED lights may have burned out.
- Fluorescent Bulb Issue: Check the functionality of the fluorescent bulbs.
Solution: Replace any non-functional bulbs and reset the device.
3. Inconsistent Color Readings
Inconsistent readings can lead to quality control issues:
- Improper Calibration: The device may require recalibration.
- Environmental Factors: Ensure consistent ambient lighting conditions during operation.
Solution: Recalibrate the device and maintain consistent testing environments.
4. Flickering Lights
Flickering lights can disrupt the assessment process:
- Electrical Interference: Check for interference from other electrical devices.
- Worn Components: Aging components such as bulbs may cause flickering.
Solution: Isolate the device from potential electrical interference and replace any aging components.
5. Metamerism Issues
If metamerism is not displaying accurately:
- Improper Light Source Selection: Ensure the correct light source is selected for testing.
- Sample Preparation: Verify that samples are prepared correctly and uniformly.
Solution: Select the appropriate light source and ensure correct sample preparation methods are followed.
Symptom-Cause-Solution Table
| Symptom | Probable Cause | Solution |
|---|---|---|
| Equipment Does Not Power On | Power connection issue, fuse failure | Check connections, replace fuse |
| Error Code E-03 | LED or fluorescent bulb issue | Replace non-functional bulbs |
| Inconsistent Color Readings | Improper calibration, environmental factors | Recalibrate, maintain consistent lighting |
| Flickering Lights | Electrical interference, worn components | Isolate from interference, replace components |
| Metamerism Issues | Improper light source, sample preparation | Select correct source, verify sample prep |
Frequently Asked Questions
What should I do if my YR05532 Color Light Box shows an error code?
Each error code corresponds to specific issues within the device. It's important to consult the user manual for immediate troubleshooting steps or refer to a professional if the issue persists.
How can I maintain the YR05532 for optimal performance?
Regular maintenance should include checking light sources, ensuring proper calibration, and cleaning the light box to avoid dust accumulation that can affect readings.
Can the YR05532 be used in different industries?
Yes, the YR05532 is versatile and can be utilized across various sectors such as textiles, paints, and food industries for color consistency evaluations.
What is the expected lifespan of the bulbs in the YR05532?
The lifespan of the LED bulbs can range from 20,000 to 50,000 hours depending on usage, while fluorescent bulbs have a shorter lifespan of about 10,000 hours.
How do I recalibrate the YR05532 Color Light Box?
Recalibration typically requires following the steps outlined in the user manual, which includes using a calibration standard and adjusting the light output settings accordingly.
Where can I find replacement parts for the YR05532?
Replacement parts can be sourced directly from the manufacturer or authorized distributors, ensuring compatibility and quality assurance.
What energy requirements should I consider for the YR05532?
The YR05532 operates on an AC power supply of 220V-240V, 50/60Hz. Ensure your power source meets these requirements to avoid malfunctions.
