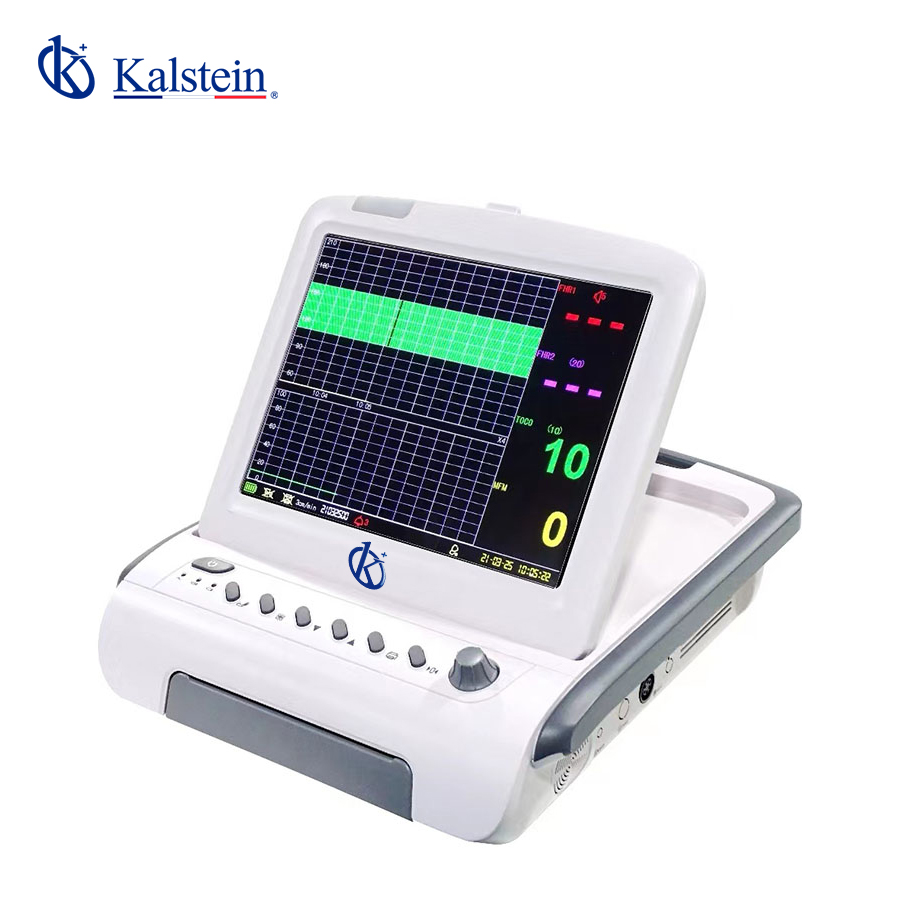

Installation and Commissioning Guide for the YR02190A Fetal Monitor
The YR02190A Fetal Monitor is an advanced device designed to monitor fetal heart rates and uterine contractions, providing critical information during labor and delivery. This guide will walk you through the installation and commissioning process, ensuring that your YR02190A operates effectively from day one.
Unboxing and Initial Setup
Upon receiving your YR02190A, it is crucial to perform a thorough inspection of the device and all included components. Here’s a checklist of items to verify:
- YR02190A Fetal Monitor Unit
- Power Cable
- Ultrasound Transducer
- External Cables and Connectors
- User Manual
Physical Setup
Place the monitor in a clean, dry area, preferably close to a power source. Ensure that there is enough space for the screen to be tilted at a 90-degree angle. It's essential to position the monitor at eye level for ease of use.
Connecting the Power Supply
Before powering on the YR02190A, ensure that the power source meets the following specifications:
- Voltage: 100-240V AC
- Frequency: 50/60Hz
Connect the power cable securely to the monitor and plug it into an electrical outlet. Avoid using extension cords to prevent any electrical faults.
Initial Calibration and Setup
After powering on the device, the YR02190A requires initial calibration. Follow these steps:
- Turn on the device using the power button.
- Follow the on-screen prompts to select the language and set the date and time.
- Connect the ultrasound transducer to the appropriate port on the device.
- Perform a test measurement by placing the transducer on the abdomen of a pregnant mannequin or a volunteer.
Configuring Measurement Settings
The YR02190A allows users to configure various measurement settings, which include:
- SpO2 (Oxygen Saturation)
- MHR (Maternal Heart Rate)
- NIBP (Non-invasive Blood Pressure)
- TEMP (Temperature)
- ECG (Electrocardiogram)
- RESP (Respiration Rate)
- TOCO (Tocography)
- FHR (Fetal Heart Rate)
To adjust these settings, access the setup menu on the monitor's display and follow the prompts to select your desired configurations.
Common Installation and Setup Issues
During the installation and commissioning of the YR02190A, users may encounter some common issues. Below is a list of potential problems and their solutions:
| Issue | Possible Cause | Solution |
|---|---|---|
| Device does not power on | Power cable not connected properly | Check all connections and ensure the outlet is functional |
| Inaccurate measurements | Improper alignment of the transducer | Reposition the transducer and ensure proper contact |
| No display on screen | Faulty monitor or power supply issues | Try a different power outlet or contact support |
Technical Specifications of the YR02190A
| Specification | Description |
|---|---|
| Model | YR02190A |
| Screen | 12.1 inch Color TFT, 90-degree adjustable |
| Resolution | 800 x 600 |
| Maximum Waveforms | 6 |
| Standard Configuration | SpO2, MHR, NIBP, TEMP, ECG, RESP, TOCO, FHR, FM, Recorder |
| Optional Configuration | Fetal Stimulator, FHR2, Cart |
| Max Audio Output Power | 1.5 Watts |
Frequently Asked Questions
What should I do if the YR02190A displays an error code?
Error codes on the YR02190A can indicate various issues depending on the code. Refer to the user manual for a detailed list of error codes and recommended solutions. It’s essential to troubleshoot according to the specific error displayed on the screen.
How often should I perform maintenance on the YR02190A?
Routine maintenance should be performed at least once every six months to ensure optimal performance. This includes checking the calibration, cleaning the device, and inspecting all cables and connectors.
Can I use the YR02190A in a mobile setting?
Yes, the YR02190A is designed for both stationary and mobile use. Ensure that it is securely mounted in a mobile cart or stand to avoid any movement during operation.
What power requirements does the YR02190A have?
The YR02190A operates on a power supply of 100-240V AC with a frequency of 50/60Hz. Ensure that the power source matches these specifications to avoid damage to the unit.
What environmental conditions are optimal for using the YR02190A?
The ideal operating temperature for the YR02190A is between +5°C and +40°C, with a relative humidity of less than 93%. Always ensure that the device is kept in a controlled environment to maintain accurate readings.
How do I reset the device if it freezes or malfunctions?
If the YR02190A becomes unresponsive, press and hold the power button for 10 seconds to perform a soft reset. If the issue persists, consult the technical support team for further assistance.
