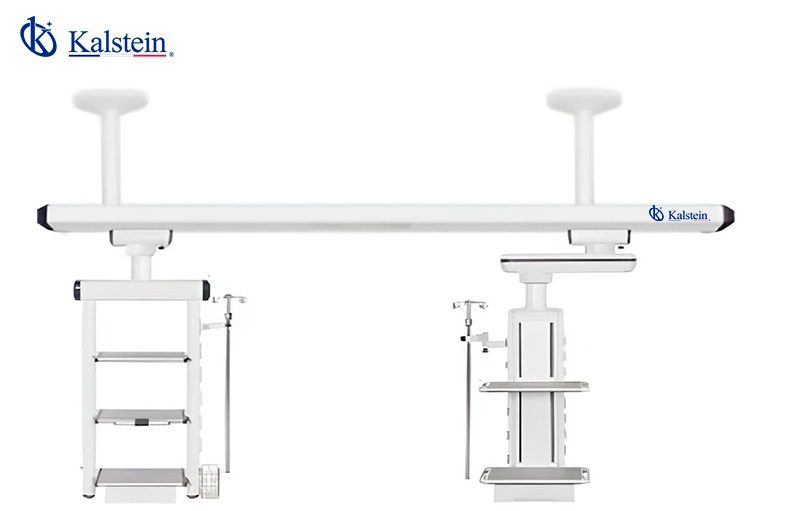

Installation and Commissioning Guide for the YR02090 Sliding Pendant
The YR02090 Sliding Pendant is designed for intensive care units, offering a versatile solution for clinical environments. This guide provides detailed instructions for installation and commissioning, ensuring proper setup and optimal performance.
Understanding the YR02090 Sliding Pendant
The YR02090 model is a ceiling-mounted pendant that enhances patient care by integrating medical utilities into a single versatile unit. Its design includes concealed wiring for safety and aesthetics, catering to both adult and pediatric patients. The pendant comprises a wet section for infusions and a dry section for monitoring equipment, maximizing space efficiency.
Technical Specifications
| Specification | Details |
|---|---|
| Model | YR02090 |
| Gas Sockets (German Standard) - O2 | 2 |
| Gas Sockets (German Standard) - Air | 1 |
| Gas Sockets (German Standard) - Vac | 1 |
| Shelves | 2 |
| Drawer | 1 |
| IV Pole | 1 |
| Multi-purpose Power Socket | 6 |
| Communication Socket RJ45 | 1 |
| Grounding Terminal | 1 |
Unboxing and Initial Setup
Upon receiving your YR02090 Sliding Pendant, begin by carefully unboxing the unit. Ensure that all parts are accounted for, including the pendant, mounting accessories, and user manual. Pay special attention to the following:
- Check for any visible damage during shipping.
- Verify that all components are included in the package.
- Review the installation manual for specific requirements.
Mounting the YR02090 Sliding Pendant
Mounting the YR02090 requires precise planning to ensure safety and functionality. Follow these steps:
- Select the installation location, ensuring adequate ceiling strength and height.
- Use the provided mounting kit to secure the pendant to the ceiling. Ensure that all screws are tightened properly.
- Check that the pendant is level and positioned correctly for optimal use.
Electrical and Gas Connections
The YR02090 Sliding Pendant provides multiple gas sockets and power connections. It is essential to follow local regulations and manufacturer guidelines when connecting these utilities:
- Connect the power supply to the multi-purpose socket following the wiring diagram provided in the manual.
- Ensure that all gas connections are leak-tested before operation.
- Integrate communication connections such as the RJ45 socket as needed.
First Power-Up and Calibration
After installation, perform the following steps for the first power-up:
- Turn on the main power supply and verify that all indicators light up correctly.
- Conduct initial calibration for any attached monitoring equipment. Follow the manufacturer’s instructions for calibration procedures.
Common Installation Mistakes
Here are some common mistakes to avoid during the installation of the YR02090:
- Not adequately securing the pendant to the ceiling, which may lead to instability.
- Overlooking the need for a level installation, affecting the operation of the equipment.
- Failing to test gas connections for leaks, which poses safety hazards.
Frequently Asked Questions
What are the key features of the YR02090 Sliding Pendant?
The YR02090 Sliding Pendant includes features such as multiple gas sockets (O2, air, and vacuum), adjustable shelves, an IV pole, and a modular design that allows for effective space utilization in clinical settings.
How do I maintain the YR02090 Sliding Pendant?
Regular maintenance involves ensuring gas connections are leak-free, checking electrical connections, and cleaning the unit as per the manufacturer’s recommendations to prevent accumulation of dust and contaminants.
Can the YR02090 be used in both adult and pediatric care?
Yes, the YR02090 Sliding Pendant is designed to cater to both adult and pediatric patients by providing customizable medical utility interfaces, making it versatile for different care needs.
What preparations are required for installing the YR02090?
Preparation includes ensuring ceiling strength, assessing the installation space for adequate height, and confirming the availability of required utilities such as electrical power and gas connections.
What safety precautions should I take during installation?
Safety precautions include ensuring that the installation area is clear, using appropriate personal protective equipment (PPE), and following all local electrical and gas installation codes.
Is there a warranty for the YR02090 Sliding Pendant?
Yes, the YR02090 comes with a warranty that covers manufacturing defects. Be sure to check the warranty documentation for specific terms and conditions.
How can I request a quote for the YR02090 Sliding Pendant?
Please contact us directly to request a quote for the YR02090 Sliding Pendant, and our sales team will assist you promptly.
