Optical Surgical Navigation
Optical surgical navigation is revolutionizing the way surgeries are performed, offering enhanced precision and improved patient outcomes. This advanced technology utilizes real-time imaging and tracking systems to guide surgeons during complex procedures, ensuring accurate placement of instruments and reducing the risk of complications.
Investing in optical surgical navigation systems can significantly enhance surgical efficiency and effectiveness. It is crucial for medical facilities to understand the key features and benefits of these systems to make informed decisions that align with their operational needs and budget constraints.
What you should know before selecting a optical surgical navigation and making an investment
Key factors to consider
When selecting an optical surgical navigation system, it is essential to consider factors such as accuracy, ease of use, and integration with existing surgical tools. Look for systems that offer high-resolution imaging and robust tracking capabilities to ensure optimal performance during procedures.
Additionally, assess the system's compatibility with various surgical specialties and its ability to enhance workflow efficiency in the operating room. A user-friendly interface can significantly reduce training time for surgical staff.
Market price range
The market price for optical surgical navigation systems can vary widely based on features, technology, and manufacturer. Basic systems may start at lower prices, while advanced models with cutting-edge technology can be significantly more expensive.
When budgeting for such an investment, it's important to compare multiple options and consider long-term costs, including maintenance, software updates, and training expenses to ensure you are making a financially sound decision.
Value for money
Investing in optical surgical navigation systems should be viewed through the lens of value for money. Look for systems that not only meet your immediate needs but also provide long-term benefits, such as improved surgical outcomes and reduced complication rates.
Consider the potential return on investment through increased patient satisfaction, shorter recovery times, and the ability to perform more complex procedures effectively, which can lead to higher patient turnover and profitability.
Expected lifespan based on use and maintenance
The expected lifespan of optical surgical navigation systems can vary based on usage frequency and maintenance practices. Generally, with proper care and regular updates, these systems can last many years, providing reliable performance throughout their lifecycle.
It is vital to establish a routine maintenance schedule and ensure that staff is trained in proper operational procedures to maximize the longevity and efficacy of the equipment.
OPTICAL SURGICAL NAVIGATION KALSTEIN
Discover optical surgical navigation for your laboratory
Explore our advanced optical surgical navigation solutions designed to enhance surgical precision and effectiveness. Our systems are engineered to provide reliable and accurate guidance, ensuring optimal outcomes for patients and surgeons alike.

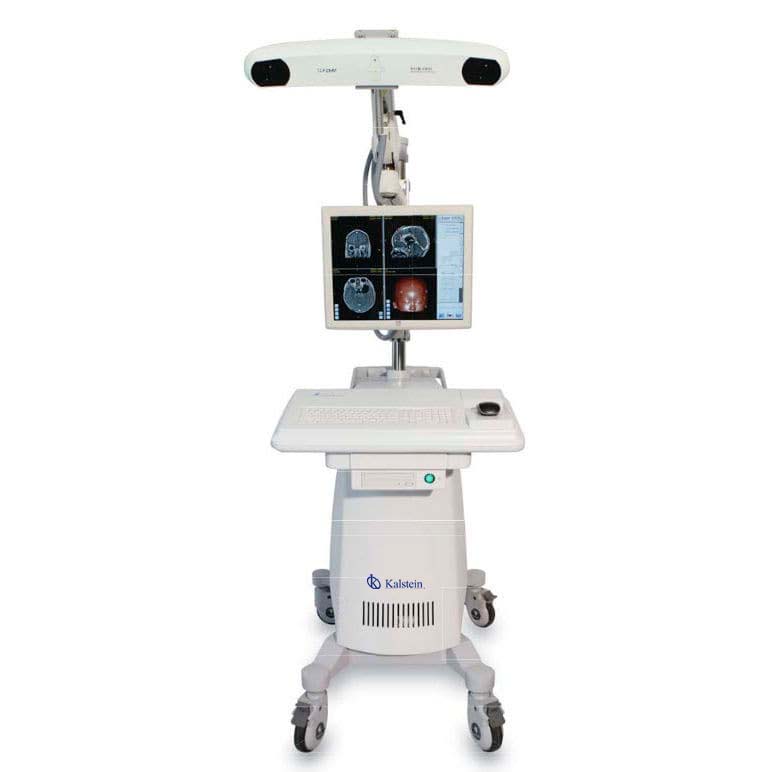

Surgical Navigation Systems YR02143
The Surgical Navigation Systems YR02143 is a cutting-edge computer-aided electromagnetic navigation system, renowned for its application in surgical v
View productOur best-selling optical surgical navigation
Surgical Navigation Systems YR02143
Market Pricing
The pricing for the YR02143 Surgical Navigation System generally varies based on specific configurations and integrated technologies. In the current market, systems of this caliber can range from $100,000 to $200,000, depending on additional features such as software modules and calibration tools. For precise pricing tailored to your specific needs, we encourage you to generate a quote using our Kalstein Plus platform.Frequently Asked Questions
Q: What types of surgeries can the YR02143 be used for? A: The YR02143 is suitable for all ENT and neurological surgeries, particularly beneficial for deep intracranial lesions, low volume intracranial lesions, and minimally invasive surgeries. Q: What imaging modalities are supported? A: It supports DICOM images captured with CT, C-arm, MRI, and fMRI scanners, providing great flexibility and versatility. Q: How does the system handle unexpected power outages? A: The system is designed to automatically save all patient image data and registration information, allowing continuance of the navigation process, thereby minimizing downtime and maintaining surgical momentum.Advantages and Disadvantages
The YR02143 Navigation System offers significant advantages, including high precision, real-time 3D tracking, and surgical convenience through advanced simulation technologies. However, the initial investment can be a consideration for smaller facilities, and training may be required to fully utilize all features.Product Use in the Field
In practical scenarios, the YR02143 is utilized by placing markers on surgical tools, which are tracked throughout the procedure to ensure accurate navigation and lesion identification. This system supports a range of surgical environments, including operating rooms where complex cranial surgeries are performed.Recommendations
To maximize the performance of the YR02143, it is advisable to regularly calibrate the optical and electromagnetic components and ensure all software updates are promptly installed. Encouraging thorough training sessions for surgical staff will enhance the utilization and efficacy of the system.Key Features
- Real-time 3D optical tracking system - Compatible with multiple imaging modalities in DICOM format - Four distinct navigation modes for process oversight - Intelligent calibration software for anatomical changes - Mobile usage with touch monitor or surgeon mouseTechnical Specifications
| Model | YR02143 | ||
| Component | Amount | Description | |
| Optical tracking system | |||
| NDI tracking system | 1 set | Track 3D position and orientation of active or passive markers attached to surgical tools | |
| Image management workstation | |||
| Computer system | 1 set | For 2D image fusion and 3D reconstruction, navigation system | |
| Touch monitor | 1 piece | 19 *, 1280 x 1024 resolution, medical and healthcare grade | |
| Software package | 1 set | Core set (image fusion, surgical planning and navigation, data management) | |
| Software version 1 | 1 piece | Diffusion-tensor-images navigation module | |
| Software version 2 | 1 piece | Needle-Aspiration-Biospy navigation module | |
| Mobile car | |||
| Support trolley with 4 wheels | 1 piece | To support the optical tracking system and image management workstation | |
| Surgical tools | |||
| Navigation probe | 2 pieces | To help the optical measurement system track movement | |
| Microscope probe | 1 piece | To help the optical measurement system track movement | |
| Active marker | 6 pieces | To help quickly recognize critical anatomical structures. | |
| Passive reflective sphere | 10 pieces | To reflect the infrared laser for cameras (in the optical tracking system) to capture | |
| Framework | 2 pieces | To locate passive reflective sphere with 4 pins | |
| Articulated arm | 1 piece | To hold the frame of reference | |
| Clamp adapter | 2 pieces | For the adaptation of another instrument (such as the brain needle during navigation) | |
| Foot-swicht | 1 piece | To help register and navigate | |
| Touchmonitor specification | |||
| Case / bezel color | Beige | Mini VGA D-sub 15-pin; DVI-D | Mini VGA D-sub 15-pin; DVI-D |
Display | Sixe: 19.0 ”diagonal, active matrix TFT | Horizontal: 31.5-80 kHz | Horizontal: 31.5-80 kHz |
| Aspect ratio: 5; 4 | Vertical: 56.3-75 Hz | Vertical: 56.3-75 Hz | |
Useful display area | Horizontal: 14.82 "(376.32 mm) | Type: 100-240 VAC, 50-60 Hz | Type: 100-240 VAC, 50-60 Hz |
| Vertical: 11.85 "(301.06 mm) | Internal DC input power supply | Internal DC input power supply | |
Monitor dimensions | Width: 429mm (16.9 ") | DC input voltage (line): 12V 3.6V | DC input voltage (line): 12V 3.6V |
| Height (including stand): 15.21 "(386 mm) | 48 W max. | 48 W max. | |
| Depth (inc. Base) | Operating; 0 ° C to 40 ° C | Operating; 0 ° C to 40 ° C | |
| Native resolution (optional) | 1280 x 1024 @ 60/70/75 Hz | Storage: -20 ° C to 60 ° C | Storage: -20 ° C to 60 ° C |
| Other supported resolutions | 1280 x 960 / 1,024 x 768 in Hz | Operating: 20% -80% | Operating: 20% -80% |
| Colors | 16.7 million | Storage: 10% -90% | Storage: 10% -90% |
Brightness | LCD panel: 300 cd / m2 | Actual: 17.66 lbs. (8 kg) | Actual: 17.66 lbs. (8 kg) |
| With AccuTouch: 246 cd / m2 | Shipping: 25.10 lbs (11.84) | Shipping: 25.10 lbs (11.84) | |
| With IntellTouch: 276 cd / m2 | 3 years | 3 years | |
| Response time | 20 msec (typical) | Typical 40,000 hours at half brightness | Typical 40,000 hours at half brightness |
| Vision angle | Horizontal (left / right): 89 ° / 89 ° | MTBF; 50,000 hours demonstrated | MTBF; 50,000 hours demonstrated |
| (Typical, from the center) | Vertical (up / down): 89 ° / 89 ° | UL, Cul, fcc, ic, ce, China RoHS, Argentina S mark | UL, Cul, fcc, ic, ce, China RoHS, Argentina S mark |
| Contrast ratio | 1300: 1 (typical) | Two watt / channel speakers located in the display head | Two watt / channel speakers located in the display head |
| Input video format | Analog: (no video card needed) | OSD locks for user and power controls | OSD locks for user and power controls |
Input sync format | Separate horizontal and vertical | OSD extras include volume, treble, bass, balance | OSD extras include volume, treble, bass, balance |
| Synchronization, compound synchronization and | OSD Language (English, Chinese, Spanish, French) | OSD Language (English, Chinese, Spanish, French) | |
| Synchronization in green | Safety lock receptacle | Safety lock receptacle | |
Detailed analysis of optical surgical navigation for an effective and safe choice
What is the optical surgical navigation function?
Computer-assisted surgery are methods of computer technology for the realization and planning of a surgical intervention. Optical surgical navigation is considered, the passage of computer surgery as a traditional basic element resulting in touch control, stereoscopic vision, manual dexterity and complete visual control of the surgical field.
Why is an optical surgical navigation system important in the O.R.?
Through technological advances in medicine, it allows health experts to reach levels of precision and safety using optical surgical navigation systems within the operating field, which are extended and assisted by computer, magnifying images, facilitating diagnosis, planning and execution of procedures.
Innovation and Outlook for the Evolution of Optical Surgical Navigation: Unraveling the Advantages of Kalstein
Optical Surgical Navigation (OSN) has revolutionized medicine, dramatically changing the way surgery is performed and conceived today. This radical advancement, primarily used in brain, spinal, and orthopedic operations, allows the surgeon a high degree of precision and care during the procedure. The origin of this vanguard comes from a manufacturer whose name echoes in the medical world: Kalstein.
Enhance Your Surgery by Increasing Precision with Optical Surgical Navigation by Kalstein
In the world of modern medicine, technological advancements have revolutionized the way surgical procedures are performed. Optical surgical navigation has transformed surgery leading to improved precision and hence, safer and more effective results.
