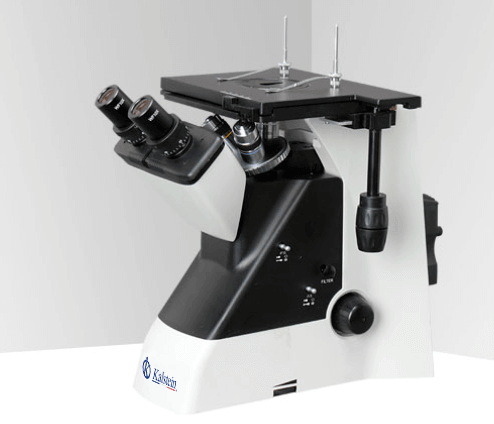

Interpreting Measurements with the YR0259 Trinocular Microscope
The YR0259 Trinocular Microscope is an advanced laboratory tool designed to enhance the experience of researchers and operators through precise measurements and clear imaging. Understanding how to correctly interpret measurement results is crucial for obtaining reliable data in various applications, including clinical labs, educational environments, and industrial settings.
Technical Specifications of the YR0259
| Specification | Details |
|---|---|
| Model | YR0259 |
| Platform Size | 180 x 155 mm |
| Movement Range | 40 x 30 mm |
| Focusing Mechanism | Coaxial coarse and fine adjustment, fine adjustment value 0.002 mm |
| Light Source | 12 V/20 W halogen lamp, continuously adjustable brightness |
| Oculars | WF10X/18, WF12.5X/14, WF16X/11 |
| Objectives | 10X/0.25, 40X/0.65, 50X/0.75, 100X/1.25 (oil) |
| Weight | 10 kg |
Understanding Measurement Units and Ranges
The YR0259 microscope allows for detailed observation and measurement, crucial for accurate results. Measurements are typically conveyed in micrometers (µm), millimeters (mm), or magnification factors, depending on what is being observed. For instance, when using the 100X objective, the effective magnification will be significantly high, allowing for the observation of minute details of specimens.
When interpreting results, it is essential to understand normal ranges for specific measurements. For example, if you are measuring cell sizes, a typical range might be from 10µm to 30µm for certain cell types. Recognizing these normal ranges assists in determining abnormalities or variations in samples.
Common Misinterpretations of Results
Operators must be aware of common pitfalls when reading measurements from the YR0259. A frequent error includes misreading the scale or misinterpreting the effect of using different objectives. Higher magnification does not always equate to better resolution; rather, it can lead to a narrower field of view and increased difficulty in locating specimens.
Moreover, lighting adjustments can significantly impact visibility and perceived measurement. Overexposure can cause blurring, while underexposure might result in underestimating the size of particles or cells.
Practical Applications of the YR0259 in Various Sectors
The YR0259 is versatile and can be used across different sectors, each with unique measurement interpretation needs. In clinical laboratories, it is essential for examining blood samples, where accurate size readings of blood cells can indicate health conditions.
In educational settings, the microscope allows students to engage with biological samples, enhancing comprehension of measurement techniques and cell biology. Proper training in interpreting the readings fosters better learning outcomes.
Industry applications include quality control, where measurements of materials and products are critical for compliance. Understanding how to effectively measure and interpret results can save time and prevent costly errors.
Setting Up for Accurate Measurements
To ensure accurate measurements with the YR0259, proper setup is crucial. The microscope should be leveled on a stable surface to prevent vibrations, which can disrupt measurement accuracy. Additionally, ensuring that the light source is correctly aligned and the appropriate objective is chosen is fundamental for clarity in measurements.
Calibrating the microscope before use can also eliminate discrepancies in measurements. Use reference slides with known measurements to adjust the settings accordingly, ensuring precision.
Troubleshooting Measurement Issues
Operators may encounter various issues that can affect the interpretation of measurements. For example, if measurements appear inconsistent, check if the microscope is properly calibrated. A symptom diagnosis table below outlines common problems, potential causes, and solutions.
| Symptom | Possible Cause | Solution |
|---|---|---|
| Inconsistent measurements | Calibration issues | Re-calibrate the microscope using reference slides |
| Blurry images | Incorrect focus or lighting | Adjust the focus and lighting settings |
| Dim display | Light source failure | Replace the halogen lamp |
Frequently Asked Questions
What are the key features of the YR0259 Trinocular Microscope?
The YR0259 features a trinocular head for enhanced viewing, a mechanical stage for precise specimen placement, and excellent optical quality achieved through multiple ocular options. The microscope is equipped with a halogen light source for optimal illumination.
How can I ensure accurate measurement results with the YR0259?
To ensure accurate measurements, calibrate the microscope regularly, use appropriate objectives, and maintain proper lighting conditions. Environmental stability is also vital for consistent results.
What should I do if I encounter blurred images while using the YR0259?
If images appear blurred, check the focus and ensure the correct objective is in use. Adjust the lighting settings as required. If the issue persists, consider checking for dust or debris on the lenses.
Which sectors benefit from using the YR0259 microscope?
The YR0259 is beneficial in clinical laboratories, educational institutes, industrial quality control, and research environments. Each sector utilizes its measurement capabilities to cater to their specific needs.
What maintenance does the YR0259 require for optimal performance?
Routine maintenance includes cleaning the optics, ensuring the light source functions well, and calibrating the instrument periodically. Also, check for any wear on mechanical components.
How do I interpret measurement results accurately?
Always compare your measurements against known reference values, keep track of measurement units, and be wary of common misinterpretations related to magnification and lighting conditions.
Can I get accessories for the YR0259 to enhance its functionalities?
Yes, various accessories like different objectives, filters, and camera attachments can enhance the functionality of the YR0259, allowing for a more versatile use in different applications.
