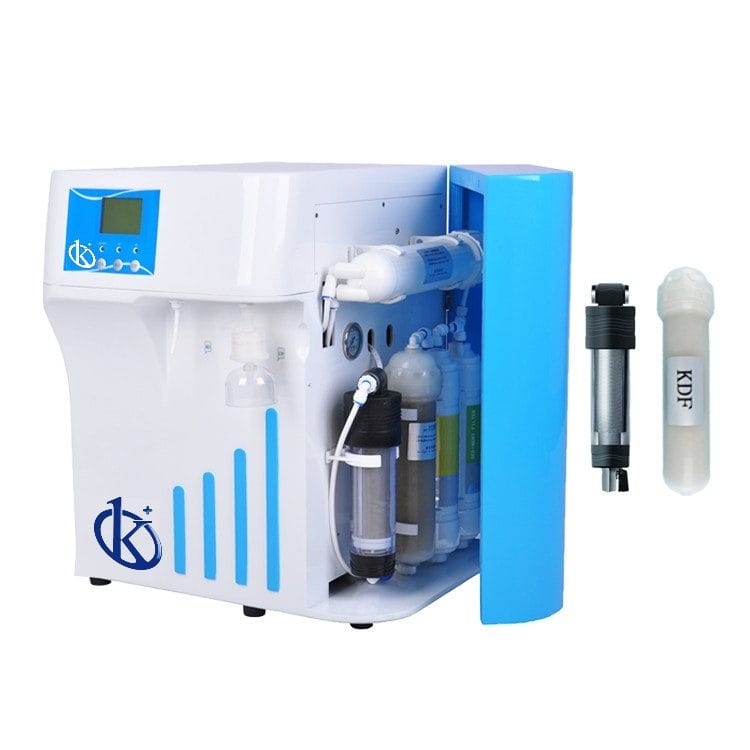

Installation and Commissioning Guide for the YR54-1 Water Purification System
The YR54-1 Water Purification System is a compact solution that combines the production of pure and ultrapure water in one unit. This guide will provide a detailed overview of the installation and commissioning process for the YR54-1, ensuring optimal performance and user satisfaction.
Unboxing and Checklist
Before starting the installation process, it is essential to carry out an unboxing checklist. Ensure that all components listed below are present and undamaged:
- YR54-1 Water Purification System
- Remote water dispenser
- Power cable
- Quick connection fittings
- User manual
- Calibration liquids (if applicable)
Site Preparation Requirements
Proper site preparation is crucial for the effective installation of the YR54-1. Here are the site requirements:
| Requirement | Details |
|---|---|
| Temperature Range | 5-40°C |
| Humidity | 20-80% (non-condensing) |
| Electrical Supply | Voltage and frequency according to local standards |
| Space | Minimum clearance of 10 cm around the unit |
| Drainage | Access to a drainage point for waste water |
Anchoring and Leveling the System
The YR54-1 must be installed on a stable surface. Follow these steps to anchor and level the system:
- Use a spirit level to ensure the base of the unit is level.
- Secure the system using the provided mounting brackets if required.
- Ensure that the unit is firmly anchored to prevent movement during operation.
Power-up Sequence
Once the YR54-1 is in place, follow the power-up sequence:
- Connect the power cable to the system and plug it into an electrical outlet.
- Ensure that the water supply line is connected properly.
- Turn on the main power switch.
- Observe the LCD display for any error messages during the startup process.
First-run Calibration
Calibration is essential to ensure accurate readings from the YR54-1:
- Use the calibration liquids provided to calibrate the system.
- Follow the instructions in the user manual for conducting the calibration.
- Check the conductivity readings to ensure they match the standards specified.
Common Setup Mistakes
Be aware of these common mistakes during the setup process:
- Neglecting to level the unit, which can affect performance.
- Incorrectly connecting the water supply, leading to potential leaks.
- Skipping the calibration step, resulting in inaccurate water purity readings.
Technical Data Table for YR54-1
| Model | YR54-1 |
|---|---|
| Feeding Water Source | Urban tap water, pressure: 0.15-0.5MPa, temperature: 5-40°C |
| Flow Rate | 1.5-2L/min (with pressure barrel) |
| Machine Capacity | 15 L/H |
| Purified Water Quality | RO water: desalination rate 95-99%; UP water: resistivity 18.25MΩ.cm@25°C |
| Weight | 51 kg |
| Dimensions | 55 x 63 x 68 cm |
Frequently Asked Questions
What are the key features of the YR54-1 Water Purification System?
The YR54-1 combines both pure and ultrapure water production in one unit, features quick-change cartridge connections, and offers a microprocessor control system for automated management.
How do I troubleshoot if the system does not produce water?
Check the water supply connection, ensure that the system is powered on, and verify that the cartridges are correctly installed and not overdue for replacement.
Can the YR54-1 be installed in a laboratory with limited space?
Yes, the YR54-1 is designed for compact installation, suitable for placement underneath countertops or mounted on walls without additional mounting materials.
What maintenance is required for the YR54-1?
Regular maintenance includes checking the water supply quality, replacing consumables as needed, and performing calibration every six months to ensure accuracy.
How does the temperature compensation feature work?
The YR54-1 uses platinum chip temperature sensors to provide accurate temperature compensation, ensuring that measurements are reliable and comply with USP requirements.
What safety features are included in the YR54-1?
The system includes a water leak sensor that automatically shuts off the water supply and activates an alarm in case of leaks, ensuring safe operation.
Where can I find replacement parts for the YR54-1?
Replacement parts and consumables can be ordered directly from authorized suppliers or through the manufacturer's catalog.
