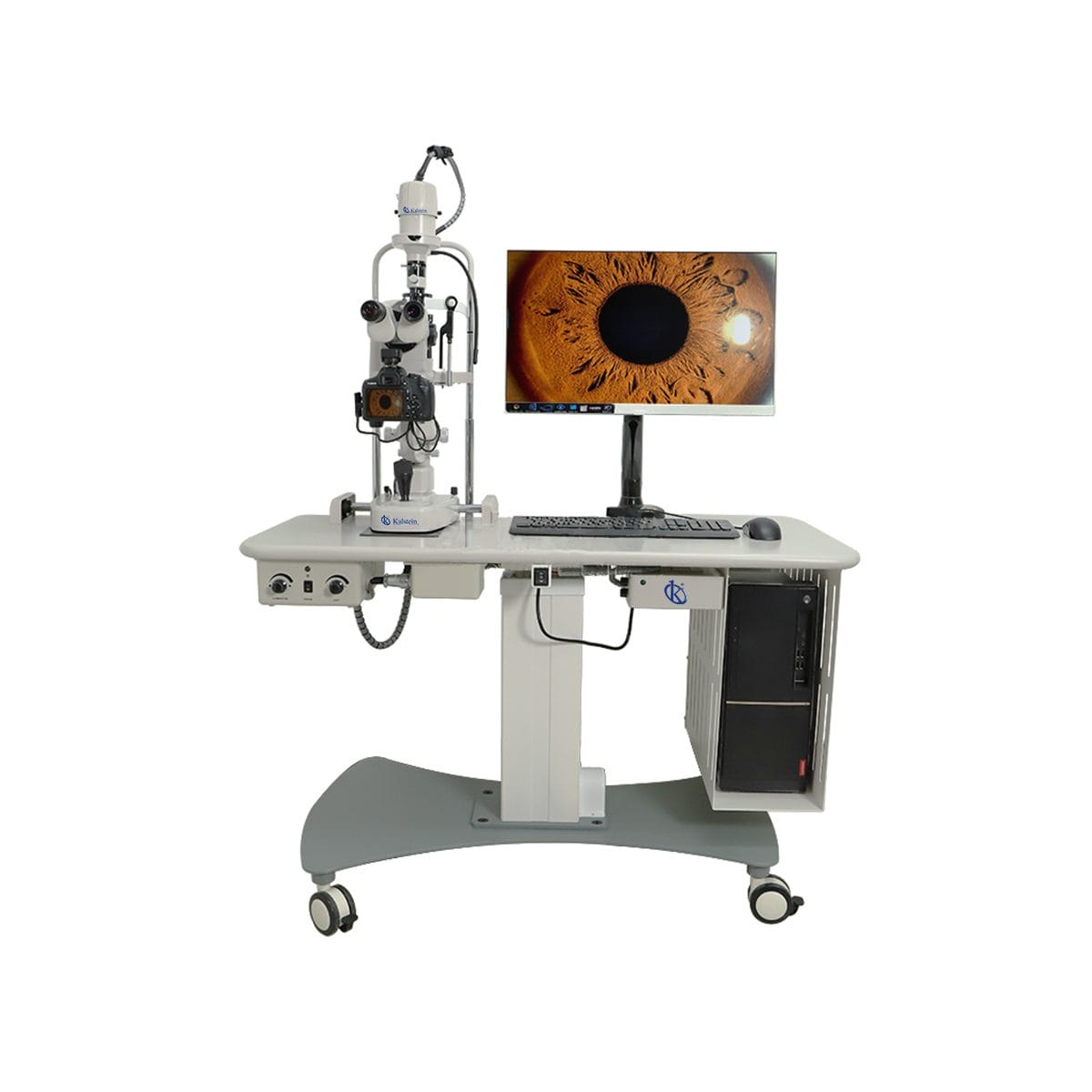

Installation and Startup Guide for the YR06200 Digital Veterinary Slit Lamp
The YR06200 Digital Veterinary Slit Lamp is a professional-grade imaging system designed for high-resolution digital photography in veterinary applications. This guide aims to provide step-by-step instructions for the installation and initial setup of the YR06200, ensuring that users can maximize the lamp's capabilities from the start.
Unboxing Checklist
Before proceeding with the installation of the YR06200, ensure that all components are present and undamaged. The typical contents of the packaging include:
- YR06200 Digital Veterinary Slit Lamp
- Power Cord
- Eyepiece (12.5X)
- User Manual
- Warranty Information
- Calibration Tool
Anchoring and Leveling
Place the YR06200 in a stable and level location, ideally on a firm surface that minimizes vibrations. Use a leveling tool to ensure the device is perfectly aligned. This step is crucial for accurate measurements and imaging.
Power-Up Sequence
To power up the YR06200, follow these steps:
- Connect the power cord to the YR06200 and plug it into an appropriate outlet (110V/220V ± 10%, 50/60Hz).
- Ensure that the lamp is positioned correctly before turning it on.
- Press the power button and allow the device to initialize. This may take a few moments.
First-Run Calibration
Once powered on, perform a calibration to ensure accurate imaging:
- Use the calibration tool included in the package.
- Follow the instructions in the user manual for step-by-step calibration.
Network/USB Setup
The YR06200 supports connectivity for data transfer. Connect the device to a computer using the USB interface:
- Locate the USB port on the YR06200.
- Connect the USB cable to the device and the computer.
- Install any necessary drivers as per the instructions in the user manual.
Validation of the First Measurement
After the initial setup, validate the first measurement by:
- Taking a sample measurement of a known test object.
- Comparing the results with established benchmarks.
Common Setup Mistakes to Avoid
When setting up the YR06200, avoid the following common mistakes:
- Not leveling the device, which can lead to inaccurate imaging.
- Incorrect power voltage leading to device malfunction.
- Failure to calibrate before the first use.
Technical Specifications of YR06200
| Specification | Details |
|---|---|
| Model | YR06200 |
| Microscope Type | Parallel angle type |
| Eyepiece | 12.5X |
| Total Magnification | 6X, 10X, 16X, 25X, 40X |
| Visual Field Diameter (mm) | φ37, φ23, Ø14, Ø8.7, size 5.7 |
| Diopter Adjustment | -5D ~ +5 D |
| Fissure Width/Height Width | 0mm ~ 10mm continuously adjustable |
| Spot Diameter (mm) | Ø10, Ø8, Ø5, Ø3, φ2, φ0.2 |
| Crack Angle | 0° ~ 180° continuously adjustable |
| Lighting | Imported tungsten, 12V/60Hz |
| Input Voltage | 110V/220V (± 10%) 50/60Hz |
| Input Power | 60VA |
Frequently Asked Questions
What is the ideal environment for using the YR06200 Digital Veterinary Slit Lamp?
The YR06200 functions best in a temperature-controlled environment with humidity levels between 20% and 80%. Ensure that there is no excessive dust or vibration in the area.
How do I maintain the YR06200 to ensure its longevity?
Regular maintenance includes cleaning the lenses with appropriate solutions, checking electrical connections for wear, and ensuring that the calibration is checked periodically.
Can the YR06200 be connected to a printer for printing images?
Yes, the YR06200 can be connected to a professional color inkjet printer, allowing users to obtain high-precision prints of the images captured.
How do I troubleshoot power issues with the YR06200?
If the device does not power on, first check the power cord and connections. Verify that the power outlet is functional. If these checks do not resolve the issue, consult the user manual for further troubleshooting steps.
Are there any specific accessories recommended for the YR06200?
Recommended accessories include additional eyepieces for different magnifications, filters for specific imaging needs, and a calibration kit for ensuring measurement accuracy over time.
What type of training is required to operate the YR06200 effectively?
Training should include understanding the functions of the device, practical usage for capturing and processing images, and interpreting the results. It is advisable to consult the user manual and undergo hands-on training if available.
How can I request a quote for the YR06200 Digital Veterinary Slit Lamp?
You can request a quote by contacting Kalstein directly through their communication channels. They will assist you with pricing and availability.
