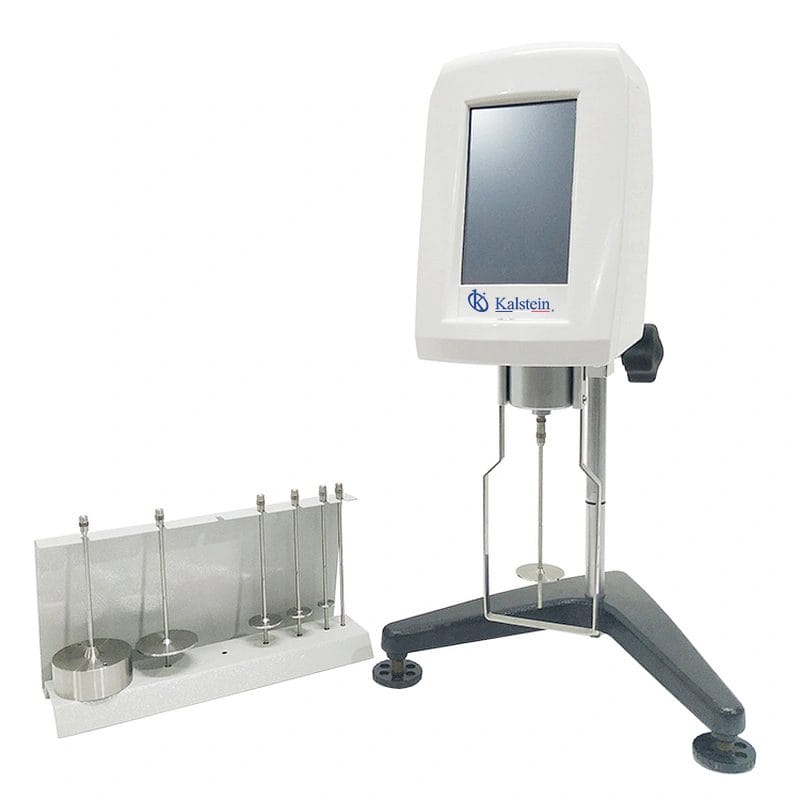

Installation and Commissioning Guide for the YR05859 Brookfield Viscometer
The YR05859 Brookfield Viscometer is a state-of-the-art instrument designed for precise viscosity measurement in various applications such as research, quality control, and production processes. This guide focuses on the essential steps necessary for the successful installation and commissioning of the YR05859 unit, ensuring that it operates accurately and efficiently.
Unboxing and Initial Setup
When you receive your YR05859 Brookfield Viscometer, the first step is to carefully unbox the device. Check all components against the included packing list to ensure nothing is missing. The box should contain the following items:
- YR05859 Viscometer unit
- Spindle set (numbers 0 to 7)
- Temperature sensor
- Power adapter
- User manual
- Hexagonal wrench
- Solid wrench
- Protective frame
- Base plate
After verifying the contents, select an appropriate location to set up the instrument. Ensure that the surface is stable and level to avoid any inaccuracies during operation.
Anchoring and Leveling the Unit
The YR05859 must be installed on a sturdy, vibration-free surface to ensure accurate measurements. Follow these steps to anchor and level the viscometer:
- Position the unit on the flat surface.
- Use a leveling tool to check that the instrument is level in both the horizontal and vertical directions.
- Adjust the feet of the unit as necessary to achieve a level position.
- If required, secure the unit using the mounting brackets provided.
Power-Up Sequence
Once the YR05859 is securely anchored and leveled, you can proceed to power it up:
- Connect the power adapter to the unit.
- Plug the power adapter into a suitable electrical outlet.
- Switch on the unit using the main power switch located at the back of the device.
- Observe the startup sequence on the LCD display; check for any error messages.
Calibration and First-Run Validation
Calibration is crucial to ensure the accuracy of your YR05859. Follow these steps to calibrate your viscometer:
- Allow the unit to warm up for 30 minutes before calibration.
- Select the appropriate spindle for your sample type.
- Fill the sample container as per the specifications outlined in the manual.
- Run the calibration procedure detailed in the user manual, following prompts on the LCD display.
- Once calibration is complete, conduct a test measurement to validate the settings.
Common Setup Mistakes and How to Avoid Them
Setting up the YR05859 can be straightforward, but operators must be aware of common mistakes:
- Incorrect spindle selection: Ensure the spindle selected matches the viscosity range of your sample.
- Not leveling the instrument: Failure to level the unit can lead to significant measurement errors.
- Improper sample filling: The sample container should be filled adequately, avoiding air bubbles.
- Skipping calibration: Never skip calibration steps during the initial setup.
Technical Specifications of the YR05859
| Specification | Details |
|---|---|
| Model | YR05859 |
| Measurement Range | 10-13,000,000 mpa.s (cp) |
| Display | LCD |
| Spindle Types | No. 0, 1, 2, 3, 4, 5, 6, 7 |
| Rotation Speed | 0.3 / 0.6 / 1.5 / 3 / 6 / 12 / 30 / 60 rpm/min |
| Operating Conditions | Temperature: 5-35°C; Humidity: max 80% |
| Dimensions | 370×325×280 mm |
| Net Weight | 6.8 kg |
| Gross Weight | 9 kg |
Frequently Asked Questions
What should I do if the YR05859 does not power on?
First, check the power connections and ensure the outlet is functioning properly. If the connections are secure and the device still does not power on, try resetting the unit by disconnecting it from power for a few minutes before reconnecting.
How do I select the appropriate spindle for my sample?
The selection of the spindle depends on the viscosity of your sample. Refer to the user manual's spindle selection table, which correlates spindle numbers with specific viscosity ranges to help you make the right choice.
What are the common error codes for the YR05859 and their solutions?
Error codes may indicate various issues, such as incorrect spindle settings or sample overflow. Refer to the troubleshooting section of the user manual for a comprehensive list of error codes and their corresponding solutions.
Can I perform a calibration check on the YR05859?
Yes, periodic calibration checks are recommended to maintain the precision of the YR05859. Follow the calibration procedure outlined in the user manual to perform checks and adjustments as necessary.
How can I maintain the YR05859 for long-term use?
Regular maintenance includes cleaning the unit after each use, storing it in a dry environment, and performing routine calibration checks as specified in the manual to ensure consistent performance.
What items are included in the YR05859 package for installation?
The package includes the YR05859 viscometer unit, a set of spindles, power adapter, protective accessories, and the user manual for installation and operation guidance.
Where can I find manuals or technical support for the YR05859?
Technical support and user manuals for the YR05859 can typically be found on the manufacturer's website or by contacting their customer service department for assistance.
