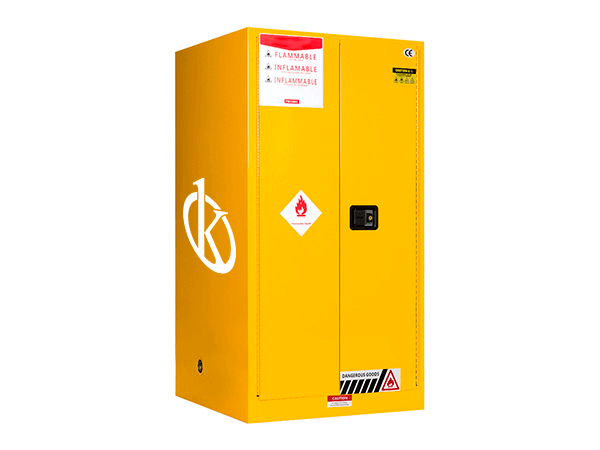

Installation and Startup Guide for the YR05471-2 Explosion Proof Cabinet
The YR05471-2 Explosion Proof Cabinet is designed for safe storage of hazardous materials, combining advanced safety features with practical usability. This guide provides comprehensive instructions for installation and startup, ensuring that operators can effectively and safely utilize this essential laboratory equipment.
Understanding the YR05471-2 Explosion Proof Cabinet
The YR05471-2 is engineered to meet stringent safety standards, featuring a robust construction that minimizes the risks associated with hazardous liquids. The cabinet is designed with a three-point locking system for enhanced security and adjustable shelves that can accommodate various container sizes. Additionally, it includes a state-of-the-art electrostatic grounding feature, which is critical for preventing static discharge during operation.
Technical Specifications of the YR05471-2
| Model | YR05471-2 |
|---|---|
| Dimensions (H x W x D) | 1650 x 1865 x 865 mm |
| Weight | 146 kg |
| Volume | 60 GAL |
| Door Type | Double Manual Door |
| Color Options | Yellow for Flammable Liquids, Red for Combustible Liquids, Blue for Corrosive Liquids |
| Adjustable Shelves | 2 Layers |
Unboxing and Initial Setup
Upon receiving the YR05471-2, carefully unbox the cabinet and inspect for any shipping damage. Ensure that you have the following items: the cabinet itself, user manual, and necessary installation hardware. Follow these steps for setup:
- Choose a level and dry location to install the cabinet, ensuring adequate clearance for ventilation.
- Secure the cabinet to the floor using the provided anchoring kits to prevent tipping.
- Verify that the electrical connections are secure and compliant with local regulations.
Power-Up Sequence and Calibration
After securing the cabinet, the next step is to power it up. Follow these guidelines:
- Connect the power supply to a grounded outlet.
- Switch on the main power button.
- Allow the cabinet to run for a few minutes to ensure all internal systems are functioning correctly.
- Perform a calibration check, ensuring that the safety features, such as the electrostatic grounding and ventilation systems, are operational.
Common Installation Challenges and Solutions
During the installation and startup processes, several common challenges may arise. Here are some potential issues and their corresponding solutions:
| Symptom | Possible Cause | Solution |
|---|---|---|
| The cabinet does not power on | Disconnected power supply | Verify that the power cable is securely connected and the outlet is functioning. |
| Ventilation system is not working | Blocked air ducts | Inspect and clear any obstructions from the air vents. |
| Electrostatic grounding feature fails to activate | Improper grounding installation | Ensure that the grounding wire is securely attached to both the cabinet and a proper ground point. |
Safety Features of the YR05471-2
The YR05471-2 is equipped with several safety features designed to protect users and the environment:
- Double Lock System: This system enhances security with two locks that require dual authentication for access.
- Three-Point Locking Mechanism: Provides superior protection against unauthorized entry.
- Adjustable Fire Vents: These vents allow control of airflow, minimizing the buildup of hazardous gases inside the cabinet.
Maintenance and Troubleshooting
Regular maintenance of the YR05471-2 ensures its longevity and operational efficiency. Here are essential maintenance tips:
- Conduct a monthly inspection of all locking mechanisms and seals.
- Check ventilation systems for any obstructions or debris.
- Clean surfaces regularly to prevent chemical buildup and corrosion.
Frequently Asked Questions
What types of materials can be stored in the YR05471-2 cabinet?
The YR05471-2 cabinet is designed for the safe storage of flammable, combustible, and corrosive liquids, categorized by color coding for easy identification.
How do I ensure proper grounding of the YR05471-2 cabinet?
To ensure proper grounding, connect the grounding wire provided to a reliable ground source and verify that the cabinet's grounding system is intact during setup.
What should I do if I encounter an error during calibration?
If an error occurs during calibration, check all connections and ensure that the cabinet is level. Reset the system and attempt the calibration again, following the user manual for specific error codes.
Is the YR05471-2 compliant with safety regulations?
Yes, the YR05471-2 cabinet is designed to meet and exceed safety standards for hazardous materials storage, ensuring compliance with relevant local and national regulations.
Can the shelves in the YR05471-2 cabinet be adjusted?
Yes, the YR05471-2 features adjustable shelves that can be moved up or down to accommodate different container sizes, enhancing usability and flexibility.
What is the weight capacity of the shelves in the YR05471-2?
The shelves in the YR05471-2 cabinet are designed to hold up to 110 gallons of liquid, making them suitable for storing various containers safely.
How do I request technical support for the YR05471-2?
For technical support, reach out to our customer service team via the contact information provided in your user manual or on our official communication channels.
