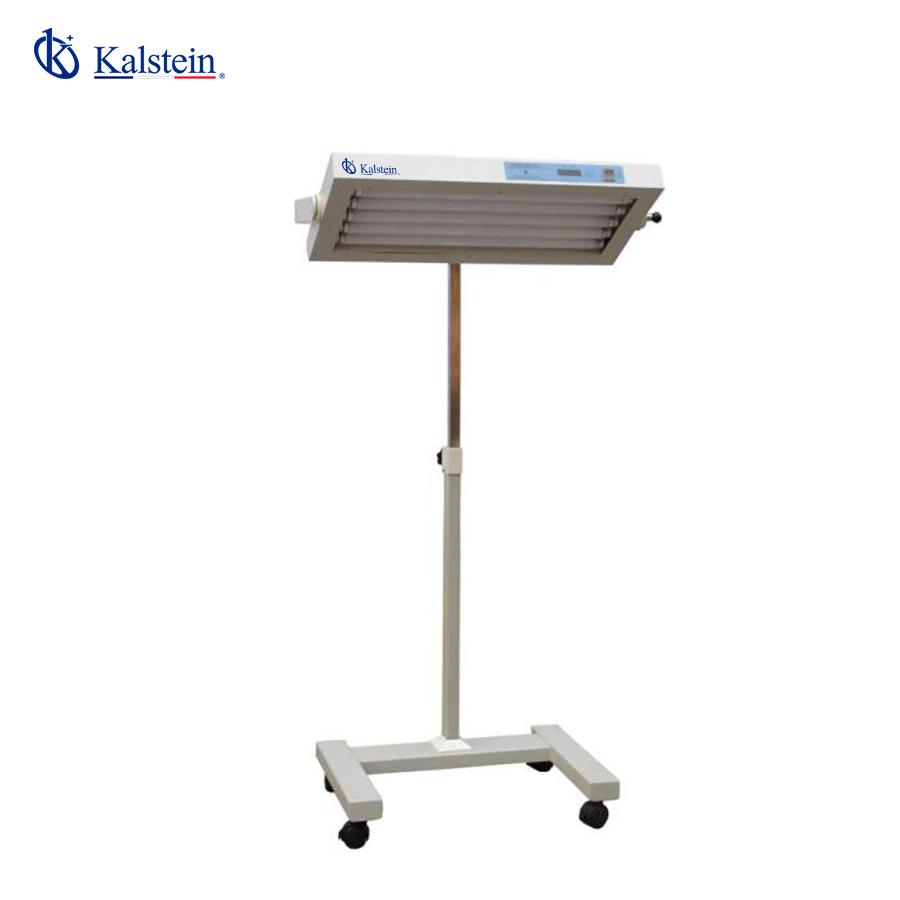

Customization and Advanced Configurations of the YR06217 Neonatal LED Phototherapy Unit
The YR06217 Neonatal LED Phototherapy Unit is designed not only to meet the essential requirements for treating neonatal jaundice but also to provide users with various customization options and advanced configurations. This article explores the unique features, accessories, and adjustments that can be made to optimize the functionality and effectiveness of the YR06217.
Technical Specifications of the YR06217
| Specification | Details |
|---|---|
| Model | YR06217 |
| Input Power | <150 VA |
| Light Source | Blue tube/LED tube |
| Light Source Effective Life | 2000/50000 hours |
| Wavelength | 400-550 nm |
| Irradiance Treatment Distance | 10~500 px |
| Effective Area | 1125 px × 600 px |
| Bilirubin Total Irradiance Maximum (Ebi max) | ≥2000 μW/cm² |
| In Effective Area Surface | ≥500 μW/cm² |
| Average in Effective Area Surface | ≥400 μW/cm² |
| Uniformity of Ebi | 0.4 |
| Infrared Radiation in Effective Area | ≤10 mW/cm² (760 nm < λ ≤ 1400 nm) |
| Ultraviolet Radiation in Effective Area | ≤1.0×10⁻⁵ mW/cm² (180 nm < λ ≤ 400 nm) |
| Time Display Accuracy | 2 h ± 1 min |
| Operating Noise | ≤55 dB(A) (ambient noise is lower than 40 dB(A)) |
| Basic Performance | Equipment total irradiance (Ebi) ≥500 μW/cm² |
| Time Display Range | 9999 h 59 min |
| Adjust Angle | 30°, 60°, 90° |
| Adjust Height | 1100 mm ~ 1500 mm |
Optional Accessories for the YR06217
The YR06217 comes equipped with various optional accessories that improve its versatility in the clinical setting. These accessories enhance the unit's performance and can be tailored to specific medical protocols and practices.
- Replacement Light Sources: These include both blue and LED tubes that extend the effective life of the unit.
- Mobile Stand: Enhances maneuverability and allows for precise positioning during phototherapy treatments.
- Head Alignment Tools: Facilitate optimal angling of the light sources at 30°, 60°, or 90° for specific treatment areas.
- Digital Timer: Enables accurate tracking of therapy duration, ensuring adherence to treatment protocols.
- Enhanced Control Panel: Optional upgrades may include digital interfaces for better user interaction.
Advanced Configuration Options
To optimize the YR06217 for different clinical environments, users can implement several advanced configuration options:
- Height Adjustment: The unit can be adjusted between 1100 mm and 1500 mm to suit various infant sizes and treatment settings.
- Angle Adjustments: The adjustable angles (30°, 60°, 90°) allow healthcare providers to direct light precisely where it is needed most.
- Intensity Control: Depending on the condition being treated, the intensity can be optimized for different treatment durations and patient responses.
- Custom Treatment Protocols: Integration with hospital systems can be achieved to develop customized therapy protocols based on individual patient needs.
Environmental Considerations for Setting Up the YR06217
When setting up the YR06217 Neonatal LED Phototherapy Unit, several environmental factors must be taken into account to ensure optimal performance:
- Temperature Control: Ensure the surrounding temperature is maintained within a suitable range to prevent overheating of both the unit and the patient.
- Humidity Levels: Monitor humidity as excessive moisture can affect the electronic components of the unit.
- Ventilation: Adequate ventilation around the YR06217 is essential to prevent overheating and maintain efficiency.
- Clearances: Maintain sufficient space around the unit for safe operation and easy access for healthcare providers.
Common Customization Challenges and Solutions
While customizing the YR06217, users may encounter specific challenges. Below is a summary of common issues and their solutions:
| Challenge | Potential Cause | Solution |
|---|---|---|
| Difficulty in adjusting height | Improper locking mechanism | Check and engage the locking mechanism properly |
| Inconsistent light intensity | Worn-out light source | Replace the light source with a new one |
| Timer does not display correctly | Calibration issues | Re-calibrate the timer following the user manual |
| Overheating | Insufficient ventilation | Ensure adequate space around the unit for airflow |
Frequently Asked Questions
What customization options are available for the YR06217?
The YR06217 offers various customization options including height adjustments, angle settings, and optional accessories such as enhanced control panels and mobile stands to improve usability.
How can I ensure the effective operation of the YR06217's light source?
Regular maintenance, including timely replacement of light sources and calibration of the unit, is essential to ensure effective operation and prolong its lifespan.
What are the recommended settings for the YR06217 in different clinical scenarios?
Settings should be tailored based on the specific needs of the patient, such as adjusting the intensity and duration of treatment according to the severity of jaundice.
Can I integrate the YR06217 with hospital management systems?
Yes, the YR06217 can be integrated with hospital management systems for tracking treatment protocols and patient data management.
What is the expected lifespan of the YR06217?
The expected lifespan of the YR06217 is over 50,000 hours for the LED light sources, assuming regular maintenance and appropriate operational conditions.
How do I handle troubleshooting for the YR06217?
Consult the user manual for troubleshooting guidelines, which typically include common issues, their causes, and suggested solutions.
Where can I request a quote for the YR06217?
To request a quote for the YR06217, please contact our sales team through our dedicated channels.
