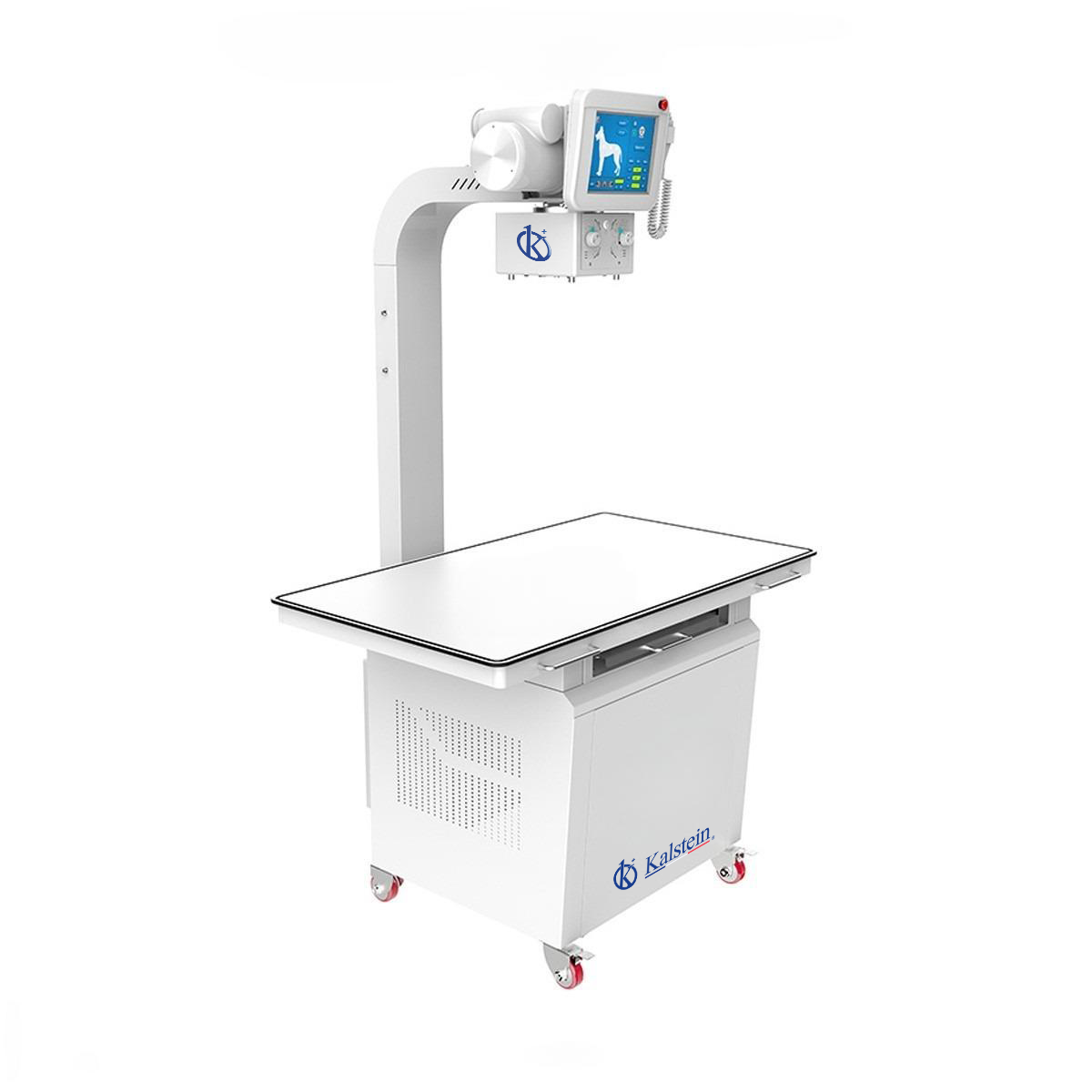

Frequent Errors and Troubleshooting Symptoms for the YR06162 Digital Veterinary X-ray
The YR06162 Digital Veterinary X-ray system is designed to provide high-quality imaging solutions for veterinary practices. However, like any sophisticated equipment, it may encounter errors and issues that require troubleshooting. This article delves into common symptoms experienced by operators and presents effective solutions to ensure the YR06162 operates efficiently and reliably.
Understanding the YR06162 and Its Common Errors
The YR06162 model is equipped with advanced technology, such as a high-frequency generator, a collimator, and a flat panel detector. While its precision is commendable, users may face several frequent errors. Understanding these errors is essential for efficient troubleshooting.
Technical Specifications of the YR06162
| Specification | Details |
|---|---|
| Model | YR06162 |
| Maximum Output Power | 16 kW |
| Input Voltage Range | AC 220V±22V |
| Applicable Support | Radiography |
| Inverter Frequency | ≥30kHz |
| Tube Voltage Range | 40kV~125kV |
| Tube Current Range | 16~200mA |
| Exposure Time Range | 0.0025s~6.4s |
| mAs Range | 0.5mAs~320mAs |
| Communication Interface | RS-232 |
| Max. Tube Voltage | 125 kV |
| Small Focus | 1.0mm |
| Large Focus | 2.0mm |
Troubleshooting by Symptoms
Understanding the symptoms that may occur with the YR06162 is crucial for effective troubleshooting. Below, we outline common symptoms, their probable causes, and solutions.
Equipment Does Not Power On
If the YR06162 does not power on, it could be due to several reasons. Check the power source and ensure the device is properly plugged in. A blown fuse may also be a cause, in which case replacing the fuse should be considered. Additionally, verify the connection of the power cable and any potential tripped circuit breakers.
Error Code E-03
The error code E-03 typically indicates a malfunction in the communication interface. Ensure that all cables are securely connected. If the problem persists, consider resetting the device and checking for software updates that may address compatibility issues.
Inconsistent Readings
If the readings from the X-ray images are inconsistent, it could stem from improper exposure settings. Verify that the tube voltage and current settings are appropriate for the type of radiography being performed. Additionally, inspect the flat panel detector for dirt or damage that could interfere with image quality.
Symptom-Cause-Solution Matrix
| Symptom | Probable Cause | Solution |
|---|---|---|
| Equipment Does Not Power On | Power source issues, blown fuse, loose connections | Check power source and connections, replace fuse |
| Error Code E-03 | Communication malfunction | Check connections, reset device, update software |
| Inconsistent Readings | Improper settings, dirty/damaged detector | Adjust settings, clean or replace detector |
Frequently Asked Questions
What should I do if the YR06162 displays an error code that is not in the manual?
If the YR06162 displays an unrecognized error code, first try resetting the device. If the error persists, consult with technical support for further insight and troubleshooting steps.
How can I ensure the longevity of the YR06162?
Regular maintenance and proper usage are crucial for ensuring the longevity of the YR06162. Follow the recommended service intervals and guidelines provided in the user manual to keep the device in optimal working condition.
Is there a specific maintenance schedule for the YR06162?
Yes, it is recommended to adhere to a maintenance schedule that includes cleaning the detector, checking power supplies, and updating software as needed. Refer to the user manual for detailed intervals and procedures.
Can I use third-party accessories with the YR06162?
While some third-party accessories may be compatible, it is advisable to use accessories specifically recommended for the YR06162 to avoid operational issues or voiding the warranty.
What types of imaging does the YR06162 support?
The YR06162 is primarily designed for radiography, making it suitable for various veterinary imaging applications, including diagnostics and treatment planning.
How do I calibrate the YR06162 after setup?
Calibration instructions can be found in the user manual. Generally, it involves setting the exposure parameters and validating the first measurement with standard test images to ensure accurate readings.
What should I do if I encounter a hardware malfunction?
In the event of a hardware malfunction, first perform basic troubleshooting steps such as checking connections and power sources. If issues persist, contact technical support for assistance or consider professional servicing.
