Biological Safety Cabinet YR06539: A Comprehensive Overview
Product Description

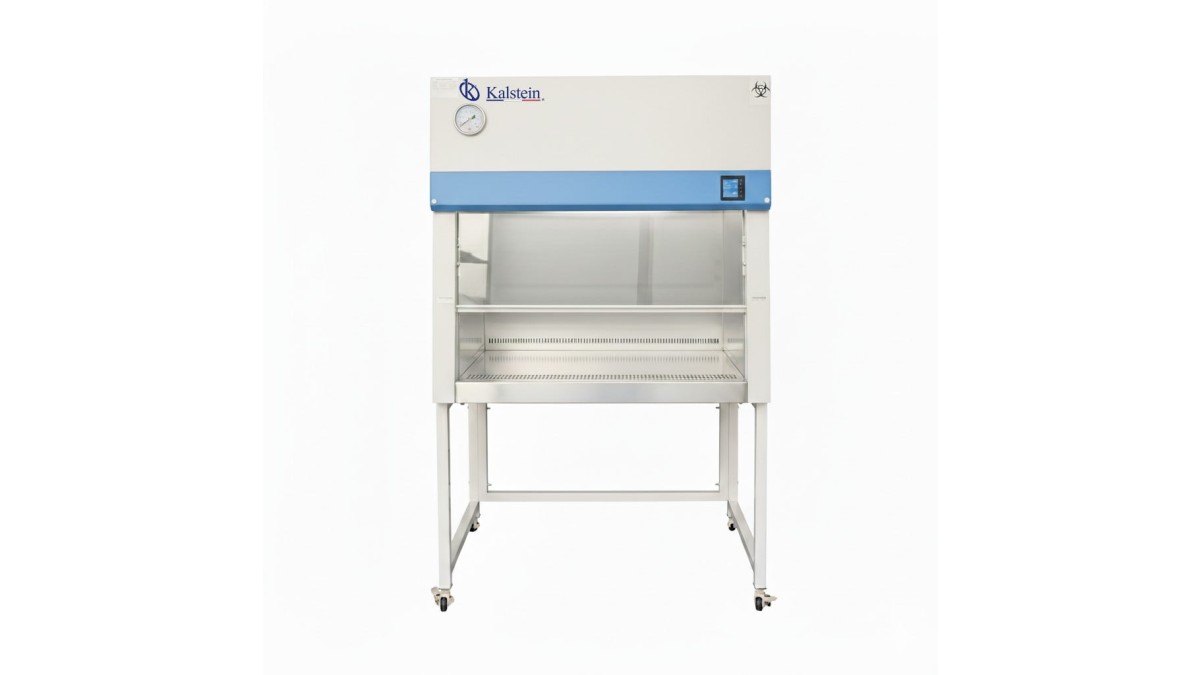

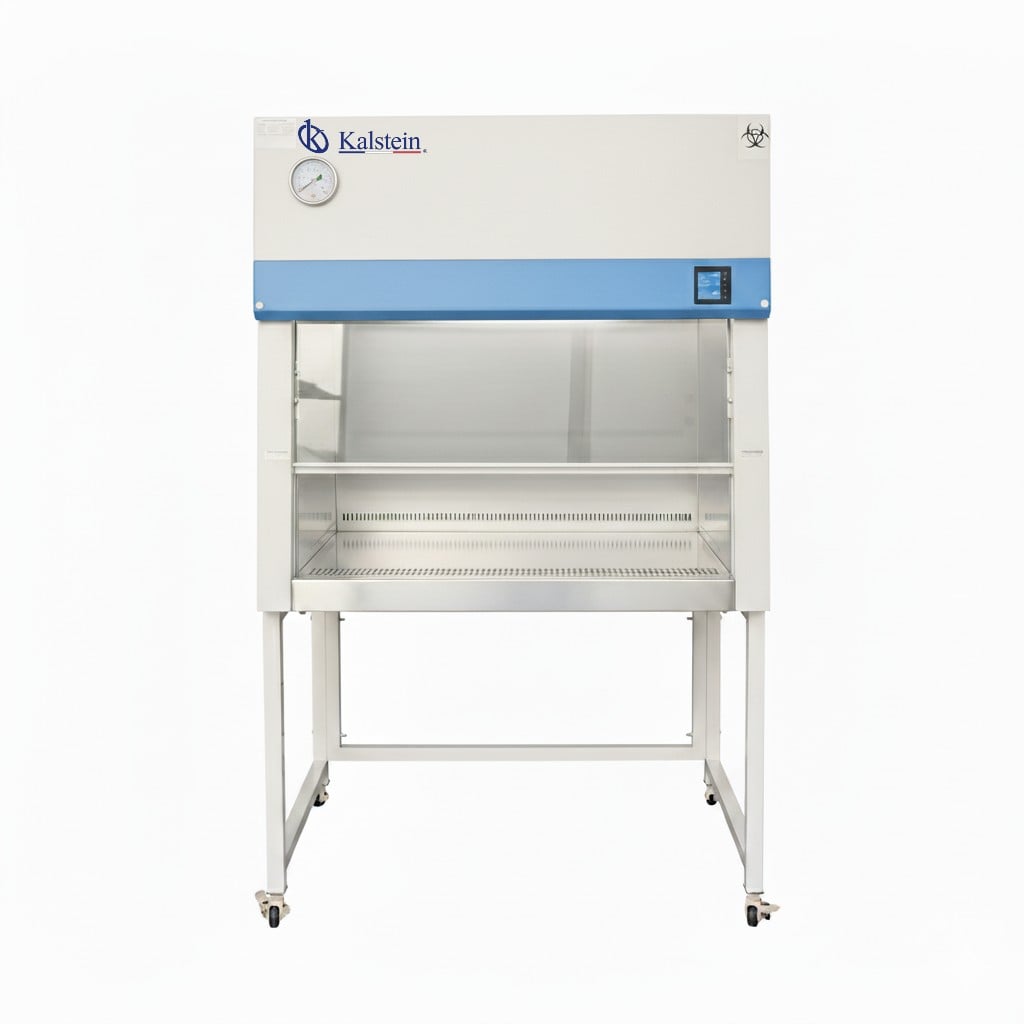

The Biological Safety Cabinet YR06539 is a cutting-edge solution engineered to safeguard personnel, products, and the environment. This model features a negative pressure system to prevent leaks effectively. It operates on a principle of 70% internal recirculation and 30% external exhaust, ensuring optimal airflow management. The cabinet's structure is constructed from high-quality cold-rolled steel, while the work surface is made from corrosion-resistant physical-chemical plates. Precision CNC laser cutting, combined with epoxy resin electrostatic spray treatment, guarantees durability.
Incorporating intelligent control, the cabinet features an LCD touch panel that facilitates intuitive understanding of its operational status. The YR06539 complies with the international standard ISO 14644.1 Class 5, which is equivalent to US Federal 209E Class 100. It is powered by a high-volume, low-energy German EBM motor optimized to minimize turbulence and ensure stable airflow uniformity. Furthermore, it is equipped with external high-efficiency HEPA filters and downflow ultra-high-efficiency ULPA filters.
Market Price
| Model | Price (USD) | Weight (Kg) | External Dimensions (mm) | Internal Dimensions (mm) |
|---|---|---|---|---|
| YR06539 | 1520.00 | 280 | 1100 x 760 x 2250 | 940 x 600 x 600 |
| YR06538 | 1450.00 | 270 | 900 x 760 x 2250 | 740 x 600 x 600 |
Frequently Asked Questions
What is the difference between ULPA and HEPA filters?
The YR06539 uses ULPA filters with ultra-high efficiency (99.999%), while HEPA filters are high-efficiency with 99.995% efficiency. Both types of filters offer excellent air purification, but ULPA filters provide a slightly higher level of cleanliness.
What is the accuracy of the downflow air control?
The downflow air control accuracy is 0.015 m/s, ensuring uniformity and stability of airflow to maintain sterility within the work area.
What sizes are available for the Biological Safety Cabinet YR06539?
The YR06539 is available with external dimensions of 1100 x 760 x 2250 mm and an internal work area of 940 x 600 x 600 mm.
What level of cleanliness does the cabinet guarantee?
The cabinet guarantees Level 5 cleanliness according to the international standard ISO 14644.1, equivalent to Class 100 of US Federal 209E, a strict requirement for sensitive environments.
What maintenance is required for the Biological Safety Cabinet YR06539?
Routine maintenance is essential, including regular filter replacements and calibration checks for the integrated sensors to ensure optimal performance.
What is the airflow configuration of the cabinet?
The airflow configuration consists of 30% exhausted air and 70% recirculated air, designed to optimize airflow management while maintaining a sterile environment.
Can the cabinet be moved easily?
Yes, the cabinet features heavy-duty wheels that allow for easy mobility while ensuring stability during operation.
Pros and Cons
Pros:
- Double Filtration: Utilizes external HEPA filters and downflow ULPA/HEPA filters, ensuring up to 99.999% efficiency.
- Superior Safety (Negative Pressure): The negative pressure design prevents leaks, protecting both the operator and the environment.
- Optimized Design: Efficient airflow ducting and optimized negative pressure box for airflow uniformity.
- High-Performance German Motor: Employs an EBM motor designed for low energy consumption and high air volume.
- Durable Construction: Made from corrosion-resistant cold-rolled steel, treated with epoxy resin for surface durability.
Cons:
- Environmental Requirements: Work environments must be maintained between 10-30°C and relative humidity of less than 70%.
- Shipping Weight: The shipping weight is significant, ranging from 138 kg to 198 kg (depending on size), complicating transportation and installation.
- Flow Limitations: Although it is recirculating (70% internal), the 30% external exhaust requires consideration of an escape ventilation system.
Field Usage
The Biological Safety Cabinet Class II Type A2 is essential for handling biological agents of low to moderate risk, such as viruses, bacteria, and cell cultures, requiring biosecurity measures. It serves as the standard choice in microbiology laboratories, hospitals, and biotechnology and pharmaceutical research centers where the protection of products, personnel, and the environment is critical. Its vibration control capacity (mean amplitude: 3μm) and stable airflow are crucial for sensitive experiments.
Recommendations
To ensure longevity and maximum safety:
- Conduct regular maintenance on filters and check the calibration of the imported sensor.
- Confirm the work environment meets temperature (10-30°C) and humidity (less than 70%) requirements.
- Periodically verify the intake airflow speed (average 0.53m/s to 0.56m/s) and the downward airflow speed (average 0.35m/s) to maintain effective negative pressure protection.
- Utilize heavy-duty mobile wheels for initial positioning and ensure stability before operation.
For those interested, we invite you to request a quote for the Biological Safety Cabinet YR06539 through our platform.
